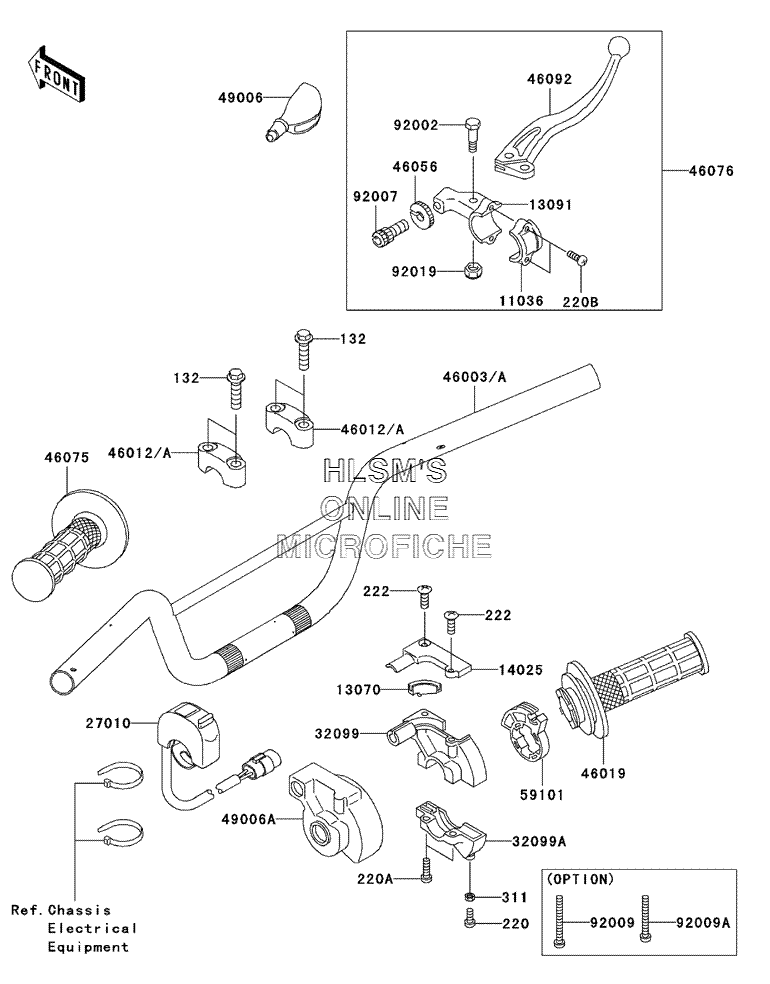

HANDLEBAR для Kawasaki KLX 110 - 2004 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0830 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220C0512 SCREW, PAN, CROS, 5X12 (BLACK)
    SCREW, PAN, CROS, 5X12 (BLACK)
  • 220A
    220C0518 SCREW, PAN, CROS, 5X18
    SCREW, PAN, CROS, 5X18
  • 220B
    220F0514 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 222
    222E0412 SCREW, CSK, RD, CROS
    SCREW, CSK, RD, CROS
  • 311
    311C0500 NUT, HEX
    NUT, HEX
  • 11036
    11036-1297 BRACKET, A, LEVER HOLDER
    BRACKET, A, LEVER HOLDER
  • 13070
    13070-1117 GUIDE, THROTTLE PEACE
    GUIDE, THROTTLE PEACE
  • 13091
    13091-1135 HOLDER, BRAKE LEVER
    HOLDER, BRAKE LEVER
  • 14025
    14025-1646 COVER, THROTTLE CASE UPPER
    COVER, THROTTLE CASE UPPER
  • 27010
    27010-1332 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-1036 CASE, THROTTLE UPPER
    CASE, THROTTLE UPPER
  • 32099A
    32099-1220 CASE, THROTTLE, LOWER
    CASE, THROTTLE, LOWER
  • 46003A
    46003-1576-CE HANDLE (SILVER)
    HANDLE (SILVER)
  • 46012A
    46012-1191 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46019
    46019-1054 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46056
    46056-006 NUT, CABLE ADJUST
    NUT, CABLE ADJUST
  • 46075
    46075-1024 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1107 LEVER, ASSY, GRIP (RIGHT)
    LEVER, ASSY, GRIP (RIGHT)
  • 46092
    46092-1048 LEVER, GRIP, BRAKE
    LEVER, GRIP, BRAKE
  • 49006
    49006-1017 BOOT, LEVER HOLDER
    BOOT, LEVER HOLDER
  • 49006A
    49006-1097 BOOT, THROTTLE CASE
    BOOT, THROTTLE CASE
  • 59101
    59101-1104 REEL, THROTTLE
    REEL, THROTTLE
  • 92002
    92002-1150 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92007
    92007-1143 SCREW, CABLE ADJUST, 7MM
    SCREW, CABLE ADJUST, 7MM
  • 92009
    92009-1989 SCREW, 5X47 (OPT)
    SCREW, 5X47 (OPT)
  • 92009A
    92009-1998 SCREW, 5X42 (OPT)
    SCREW, 5X42 (OPT)
  • 92019
    92019-008 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
