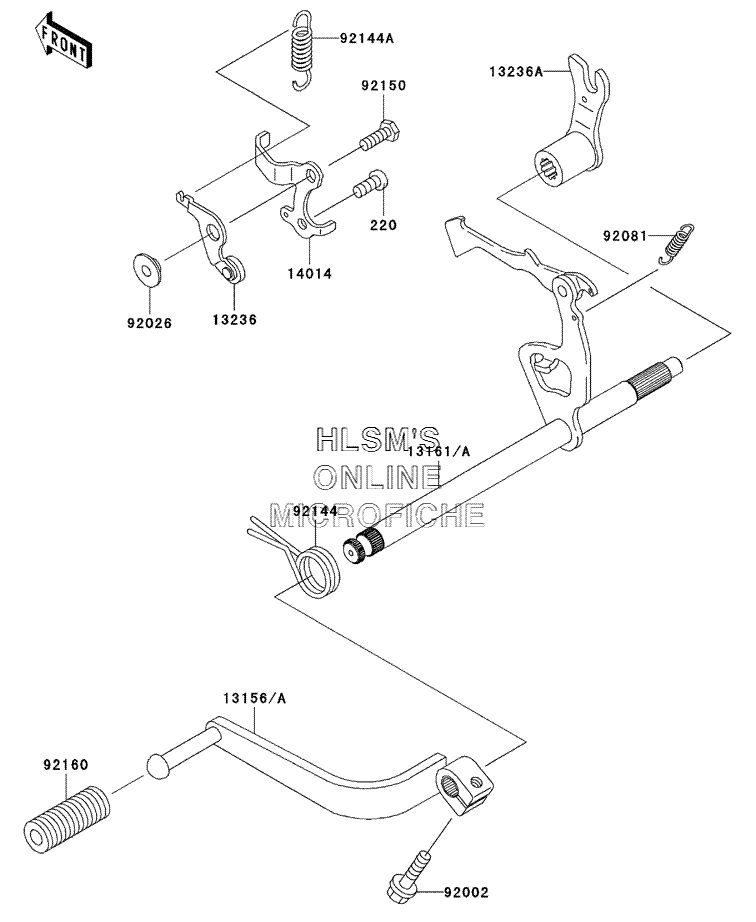

GEAR CHANGE MECHANISM для Kawasaki KLX 110 - 2004 года выпуска

  • №
    Артикул
    Название
  • 220
    220B0614 SCREW, PAN, CROS, 6X14
    SCREW, PAN, CROS, 6X14
  • 13156A
    13156-1489 LEVER, CHANGE, PEDAL
    LEVER, CHANGE, PEDAL
  • 13161
    13161-0003 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13236
    13236-1256 LEVER, COMP, POSITION
    LEVER, COMP, POSITION
  • 13236A
    13236-1288 LEVER, COMP
    LEVER, COMP
  • 14014
    14014-1118 PLATE, POSITION
    PLATE, POSITION
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92026
    92026-1217 SPACER
    SPACER
  • 92081
    92081-076 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92144
    92144-1107 SPRING, CHANGE SHAFT RETURN
    SPRING, CHANGE SHAFT RETURN
  • 92144A
    92144-1590 SPRING
    SPRING
  • 92150
    92150-1626 BOLT, 6X14
    BOLT, 6X14
  • 92160
    92160-1036 DAMPER, CHANGE PEDAL
    DAMPER, CHANGE PEDAL
