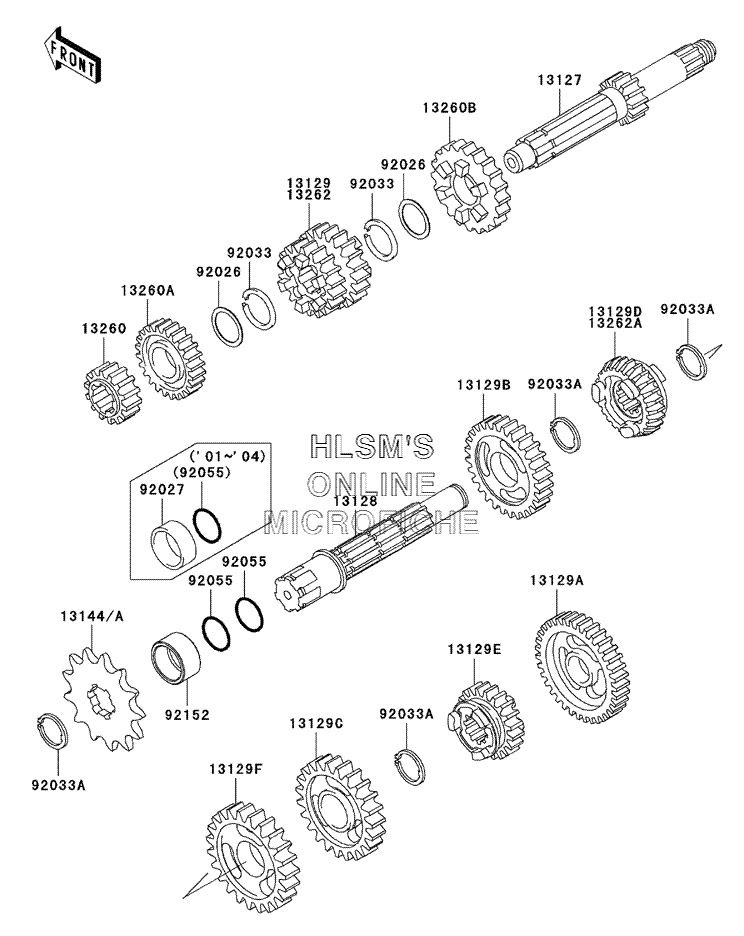

TRANSMISSION для Kawasaki KX 100 - 2003 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-1261 SHAFT, TRANSMISSION INPUT (13 TEETH)
    SHAFT, TRANSMISSION INPUT (13 TEETH)
  • 13128
    13128-1126 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-1722 GEAR, INPUT 3RD AND 4TH (18/20 TEETH)
    GEAR, INPUT 3RD AND 4TH (18/20 TEETH)
  • 13129A
    13129-1725 GEAR, OUTPUT LOW (33 TEETH)
    GEAR, OUTPUT LOW (33 TEETH)
  • 13129B
    13129-1726 GEAR, OUTPUT 2ND (30 TEETH)
    GEAR, OUTPUT 2ND (30 TEETH)
  • 13129C
    13129-1728 GEAR, OUTPUT 4TH (25 TEETH)
    GEAR, OUTPUT 4TH (25 TEETH)
  • 13129D
    13129-1729 GEAR, OUTPUT 5TH (24 TEETH)
    GEAR, OUTPUT 5TH (24 TEETH)
  • 13129E
    13129-1730 GEAR, OUTPUT 6TH (22 TEETH)
    GEAR, OUTPUT 6TH (22 TEETH)
  • 13129F
    13129-1928 GEAR, OUTPUT 3RD (27 TEETH)
    GEAR, OUTPUT 3RD (27 TEETH)
  • 13144
    13144-1022 SPROCKET, OUTPUT (14 TEETH) (OPT)
    SPROCKET, OUTPUT (14 TEETH) (OPT)
  • 13144A
    13144-1023 SPROCKET, OUTPUT (13 TEETH)
    SPROCKET, OUTPUT (13 TEETH)
  • 13260
    13260-1014 GEAR, INPUT 2ND (16 TEETH)
    GEAR, INPUT 2ND (16 TEETH)
  • 13260A
    13260-1950 GEAR, TRANSMISSION SPUR, 5TH (22 TEETH)
    GEAR, TRANSMISSION SPUR, 5TH (22 TEETH)
  • 13260B
    13260-1951 GEAR, TRANSMISSION SPUR, 6TH (23 TEETH)
    GEAR, TRANSMISSION SPUR, 6TH (23 TEETH)
  • 92026
    92026-1602 SPACER, 18X23X0.50
    SPACER, 18X23X0.50
  • 92027
    92027-1077 COLLAR, 20X25X12.5
    COLLAR, 20X25X12.5
  • 92033
    92033-028 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1079 RING, SNAP, 18MM
    RING, SNAP, 18MM
  • 92055
    92055-022 O-RING, 17.5X1.5
    O-RING, 17.5X1.5
