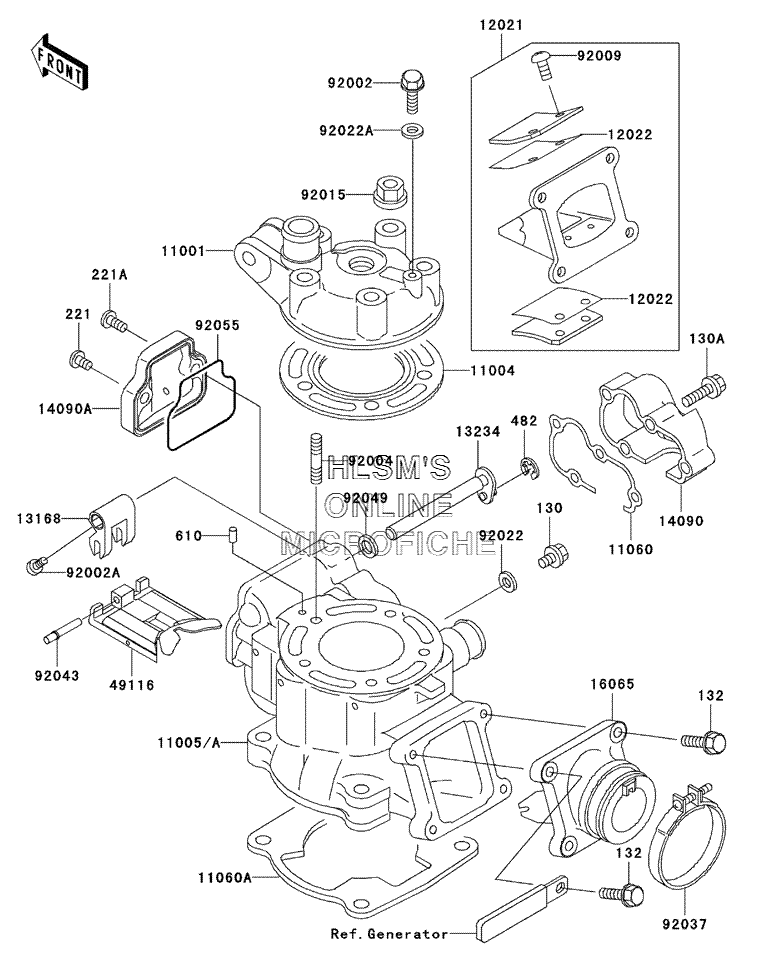

CYLINDER HEAD W/CYLINDER для Kawasaki KX 100 - 2003 года выпуска`
-
№АртикулНазвание
-
130130B0608 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
130A130G0525 BOLT, FLANGEDBOLT, FLANGED
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
221221B0616 SCREW, CSK, CROS, 6X16SCREW, CSK, CROS, 6X16
-
221A221B0620 SCREW, CSK, CROS, 6X20SCREW, CSK, CROS, 6X20
-
482482J5000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1100111001-1463 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-1214 GASKET, HEADGASKET, HEAD
-
11005A11005-1985 CYLINDER, ENGINECYLINDER, ENGINE
-
1106011060-1778 GASKET, GOVERNOR COVERGASKET, GOVERNOR COVER
-
11060A11060-1779 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1202112021-1123 VALVE, ASSY, REEDVALVE, ASSY, REED
-
1202212022-1084 VALVE, REEDVALVE, REED
-
1316813168-1499 LEVER, MAIN VALVELEVER, MAIN VALVE
-
1323413234-1105 SHAFT, COMPSHAFT, COMP
-
1409014090-1811 COVERCOVER
-
14090A14090-1812 COVERCOVER
-
1606516065-1372 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4911649116-1158 VALVE, ASSYVALVE, ASSY
-
9200292002-1222 BOLT, 6X10BOLT, 6X10
-
92002A92002-1403 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
-
9200492004-1253 STUD, 8X32STUD, 8X32
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1843 CLAMPCLAMP
-
9204392043-1470 PIN, MAIN VALVEPIN, MAIN VALVE
-
9204992049-1238 SEAL, OIL, SD088144SEAL, OIL, SD088144
-
9205592055-1566 O-RINGO-RING
