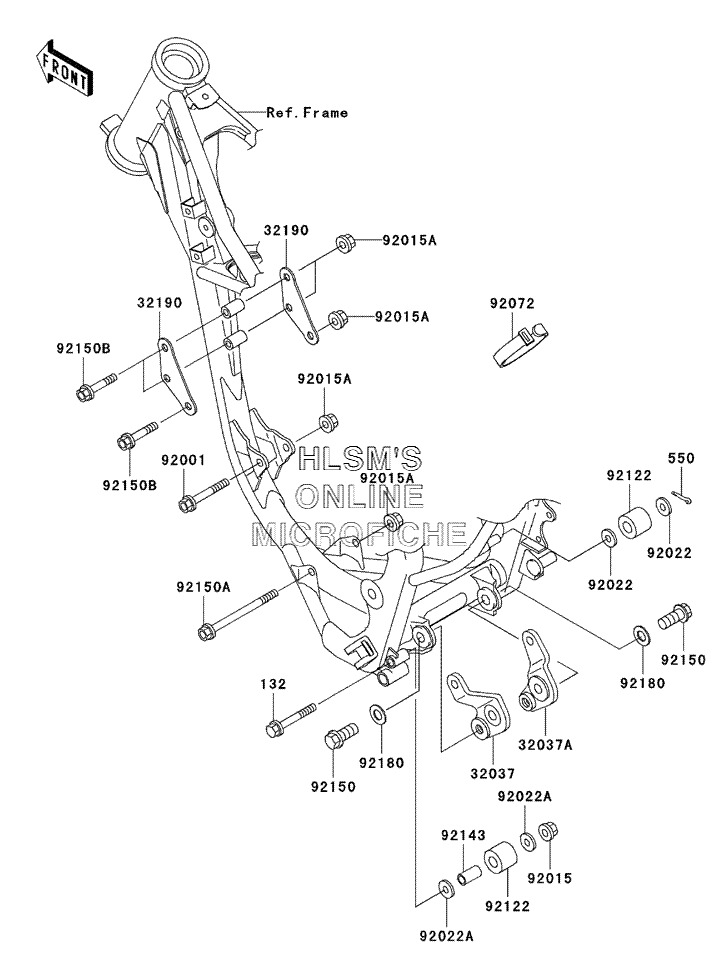

FRAME FITTING(S) для Kawasaki KX 100 - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0860 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 550
    550D2518 PIN, COTTER, 2.5X18
    PIN, COTTER, 2.5X18
  • 32037
    32037-1552 BRACKET, SHOCKABSORBER
    BRACKET, SHOCKABSORBER
  • 32037A
    32037-1553 BRACKET, SHOCKABSORBER
    BRACKET, SHOCKABSORBER
  • 32190
    32190-1119 BRACKET, ENGINE, HEAD
    BRACKET, ENGINE, HEAD
  • 92001
    92001-1006 BOLT, FLANGED, 8X63
    BOLT, FLANGED, 8X63
  • 92015
    92015-1143 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92022
    92022-107 WASHER
    WASHER
  • 92022A
    92022-1561 WASHER, 8.5X20X1.6
    WASHER, 8.5X20X1.6
  • 92072
    92072-1293 BAND, L=140
    BAND, L=140
  • 92122
    92122-1213 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92143
    92143-1432 COLLAR, 9.5X12.7X25
    COLLAR, 9.5X12.7X25
  • 92150
    92150-1359 BOLT, FLANGED, 12X27
    BOLT, FLANGED, 12X27
  • 92150A
    92150-1482 BOLT, FLANGED, 8X105
    BOLT, FLANGED, 8X105
  • 92150B
    92150-1487 BOLT, FLANGED, 8X45
    BOLT, FLANGED, 8X45
  • 92180
    92180-1060 SHIM, 12.5X24X0.5
    SHIM, 12.5X24X0.5
