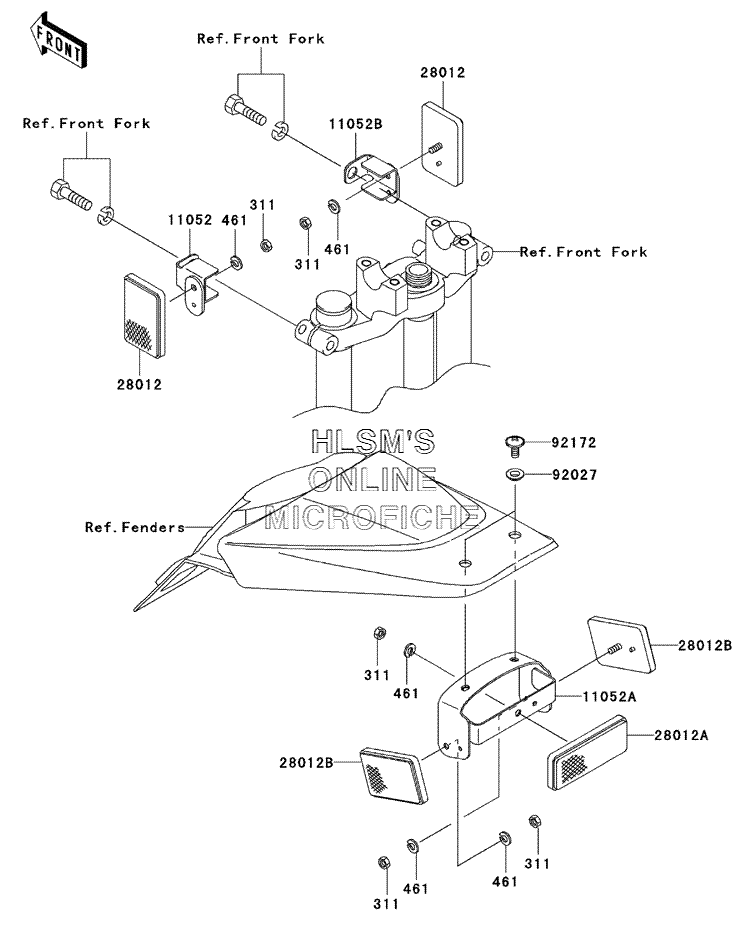

REFLECTORS (CANADA ONLY) для Kawasaki KLX 110 - 2003 года выпуска
-
№АртикулНазвание
-
311311H0500 NUT, HEXNUT, HEX
-
461461L0500 WASHER, SPRINGWASHER, SPRING
-
1105211052-1751 BRACKET, FRONT REFLECTOR (LEFT)BRACKET, FRONT REFLECTOR (LEFT)
-
11052A11052-1752 BRACKET, REAR REFLECTORBRACKET, REAR REFLECTOR
-
11052B11052-1821 BRACKET, FRONT REFLECTOR (RIGHT)BRACKET, FRONT REFLECTOR (RIGHT)
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9202792027-1018 COLLAR, L=3.5COLLAR, L=3.5
-
9217292172-0107 SCREW, 6X14SCREW, 6X14
