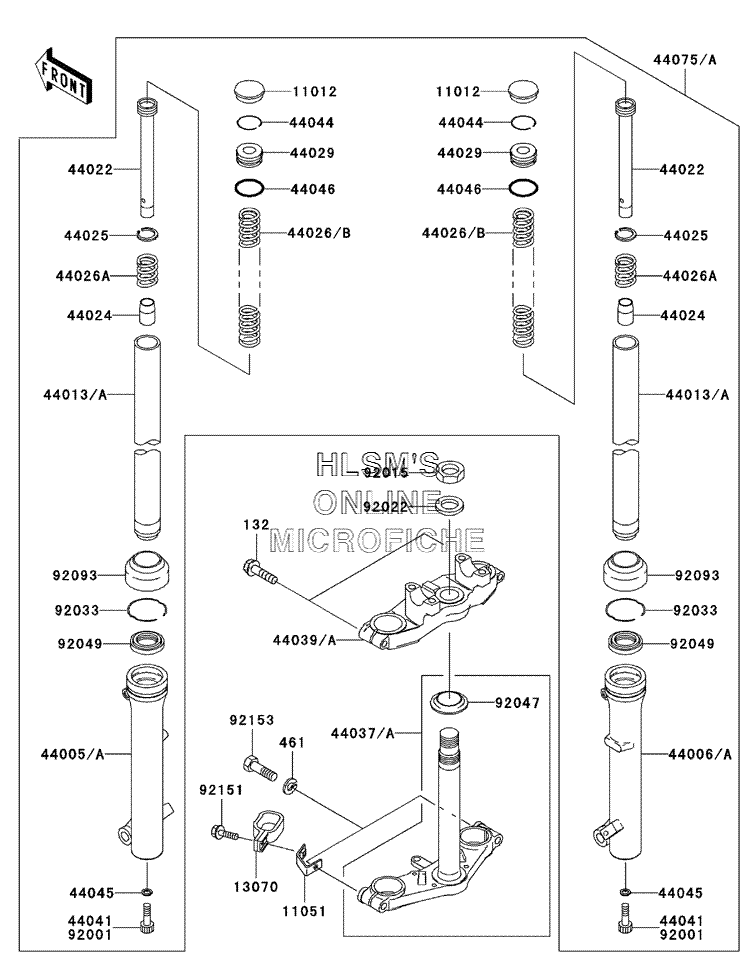

FRONT FORK для Kawasaki KLX 110 - 2003 года выпуска
-
№АртикулНазвание
-
132132G0835 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
461461F1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
1101211012-1067 CAP, RUBBER, FORK TOPCAP, RUBBER, FORK TOP
-
1105111051-1892 BRACKET, BRAKE HOSE GUIDEBRACKET, BRAKE HOSE GUIDE
-
1307013070-1349 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
44005A44005-1430 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
44006A44006-1430 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
44013A44013-1505 PIPE, FORK INNERPIPE, FORK INNER
-
4402244022-1346 CYLINDER, FORKCYLINDER, FORK
-
4402444024-1071 CAP, OIL, LOCKCAP, OIL, LOCK
-
4402544025-1061 RING, FORK PISTONRING, FORK PISTON
-
44026A44026-060 SPRING, FRONT FORK, REBOUNDSPRING, FRONT FORK, REBOUND
-
44026B44026-1763 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-022 SEAT, FORK SPRINGSEAT, FORK SPRING
-
44037A44037-1433 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
44039A44039-1326 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404144041-078 BOLT, FORK CYLINDERBOLT, FORK CYLINDER
-
4404444044-023 RING, SNAPRING, SNAP
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4404644046-025 O-RINGO-RING
-
44075A44075-1165 DAMPER, SET, FORKDAMPER, SET, FORK
-
9201592015-1653 NUT, STEERING STEM, 22MMNUT, STEERING STEM, 22MM
-
9202292022-1873 WASHER, STEERING STEMWASHER, STEERING STEM
-
9203392033-1028 RING, SNAP, FORK OUTER TUBERING, SNAP, FORK OUTER TUBE
-
9204792047-013 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
9204992049-1069 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9209392093-1054 DUST SHIELD, FORKDUST SHIELD, FORK
-
9215192151-1637 BOLT, FLANGED, 5X16BOLT, FLANGED, 5X16
-
9215392153-1199 BOLT, 10X35BOLT, 10X35
