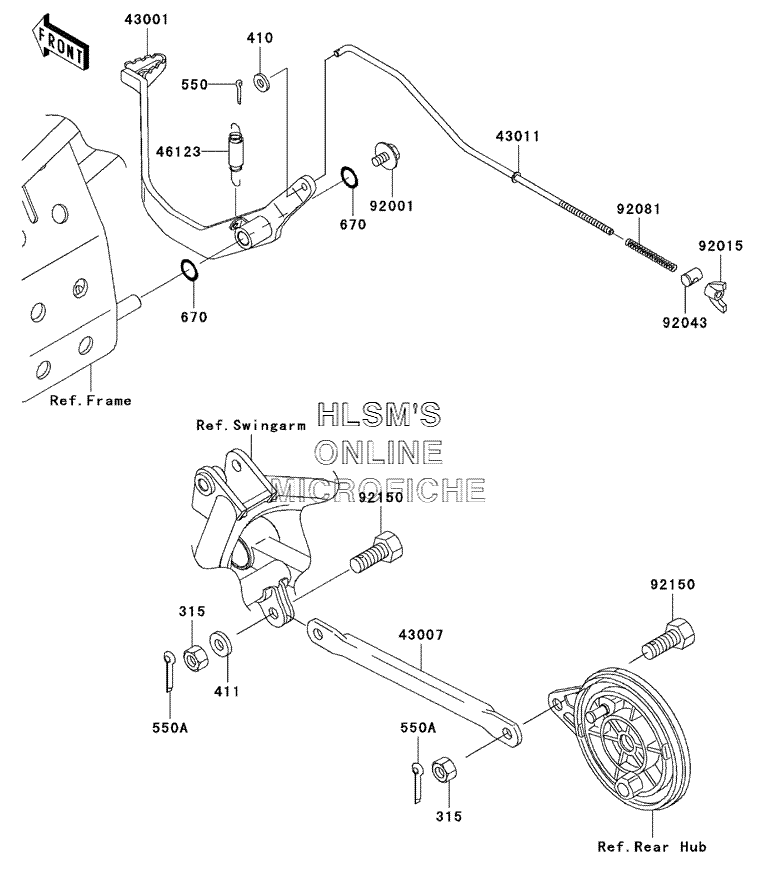

BRAKE PEDAL для Kawasaki KLX 110 - 2003 года выпуска`
-
№АртикулНазвание
-
315315G1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
411411B1000 WASHER, PLAIN, 10MMWASHER, PLAIN, 10MM
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
550A550D2020 PIN, COTTER, 2.0X20PIN, COTTER, 2.0X20
-
670670B2012 O-RING, 12MMO-RING, 12MM
-
4300143001-1445 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300743007-1203 ROD, TORQUEROD, TORQUE
-
4301143011-1186 ROD, BRAKEROD, BRAKE
-
4612346123-1060 SPRING, COMP, BRAKE PEDAL RETURNSPRING, COMP, BRAKE PEDAL RETURN
-
9200192001-1034 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9201592015-4004 NUT, WING, 6MMNUT, WING, 6MM
-
9204392043-039 PIN, BRAKE RODPIN, BRAKE ROD
-
9208192081-1688 SPRING, BRAKE RODSPRING, BRAKE ROD
-
9215092150-1873 BOLT, 10X25BOLT, 10X25
