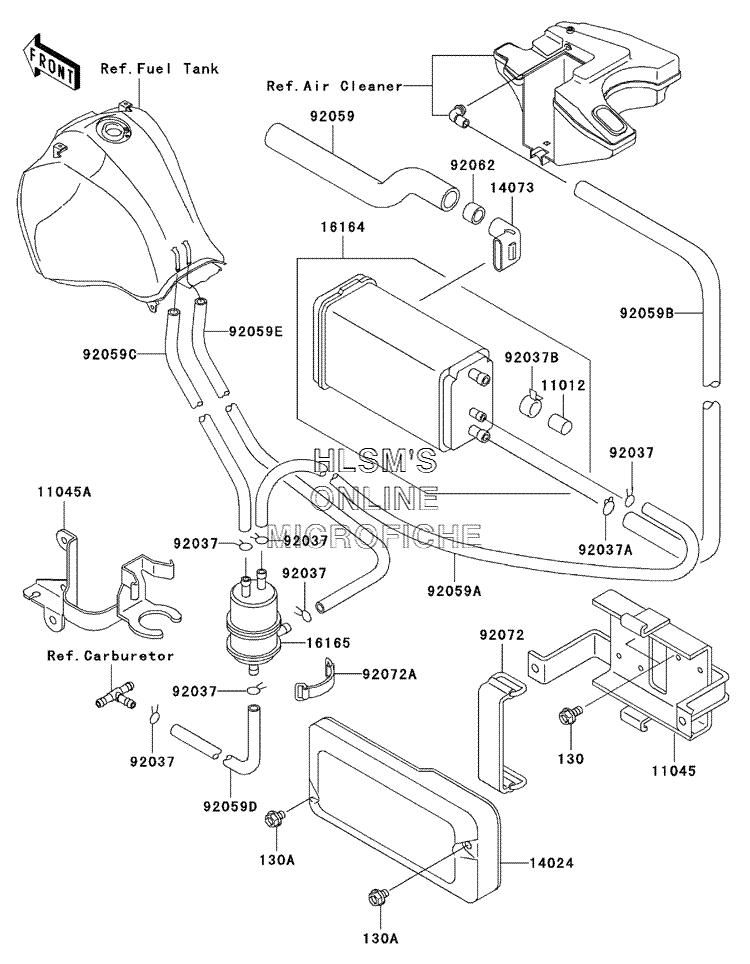

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki KLR650 - 2002 года выпуска`
-
№АртикулНазвание
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1104511045-1416 BRACKET, CANISTERBRACKET, CANISTER
-
11045A11045-1417 BRACKET, SEPARATORBRACKET, SEPARATOR
-
1402414024-1401 COVER, CANISTERCOVER, CANISTER
-
1407314073-1219 DUCT, CANISTERDUCT, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9203792037-072 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
9205992059-1800 TUBE, 14X20X200TUBE, 14X20X200
-
92059A92059-1801 TUBE, 5X9X890 (BLUE)TUBE, 5X9X890 (BLUE)
-
92059B92059-1802 TUBE, 7X12X770 (GREEN)TUBE, 7X12X770 (GREEN)
-
92059C92059-1803 TUBE, 5X9X300 (RED)TUBE, 5X9X300 (RED)
-
92059D92059-1804 TUBE, 4X9X310 (WHITE)TUBE, 4X9X310 (WHITE)
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
130A130L0608 BOLT, FLANGEDBOLT, FLANGED
-
92059E92059-1805 TUBE, 5X9X400 (BLUE)TUBE, 5X9X400 (BLUE)
-
9206292062-1070 NOZZLE, CANISTERNOZZLE, CANISTER
-
9207292072-045 BAND, L=90BAND, L=90
-
92072A92072-1419 BAND, L=50BAND, L=50
