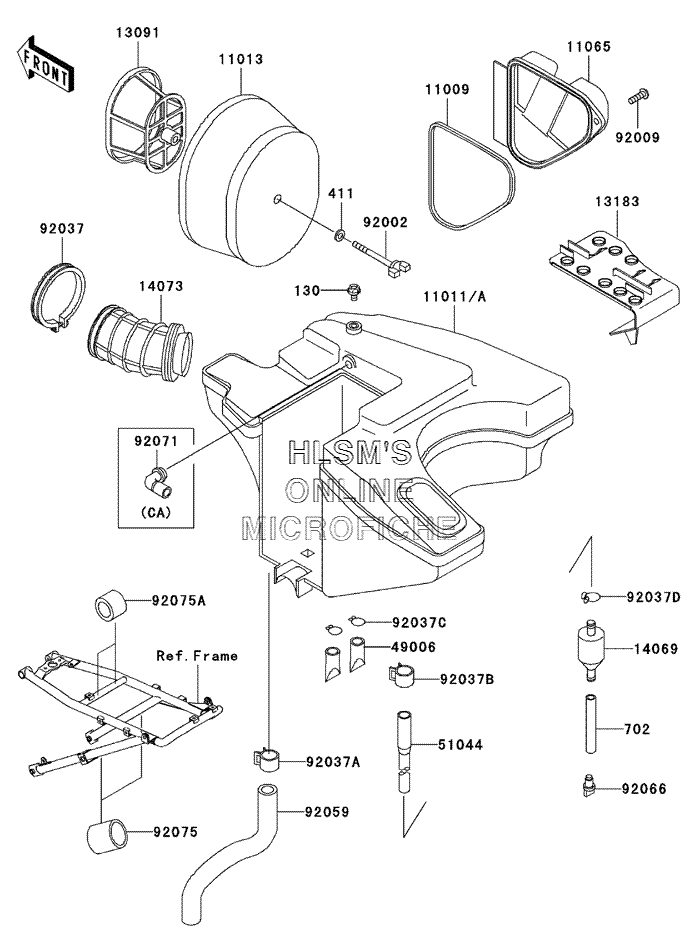

AIR CLEANER для Kawasaki KLR650 - 2002 года выпуска`
-
№АртикулНазвание
-
130130G0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
411411E0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
702702A0770 TUBE, RUBBER, 7X10X70TUBE, RUBBER, 7X10X70
-
1100911009-1649 GASKETGASKET
-
1101111011-1457 CASE, AIR FILTER (EXCEPT CALIF.)CASE, AIR FILTER (EXCEPT CALIF.)
-
11011A11011-1458 CASE, AIR FILTER (CALIF. ONLY)CASE, AIR FILTER (CALIF. ONLY)
-
1101311013-1152 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1106511065-1133 CAP, AIR FILTERCAP, AIR FILTER
-
1309113091-1473 HOLDERHOLDER
-
1318313183-1118 PLATEPLATE
-
1406914069-1051 BREATHERBREATHER
-
1407314073-1288 DUCTDUCT
-
4900649006-1211 BOOTBOOT
-
5104451044-1105 TUBE, ASSY, AIR FILTERTUBE, ASSY, AIR FILTER
-
9200292002-1904 BOLTBOLT
-
9200992009-1460 SCREWSCREW
-
9203792037-1859 CLAMPCLAMP
-
92037A92037-1860 CLAMPCLAMP
-
92037B92037-1861 CLAMPCLAMP
-
92037C92037-1900 CLAMP, 14.5MMCLAMP, 14.5MM
-
92037D92037-1972 CLAMP, TUBECLAMP, TUBE
-
9205992059-1774 TUBETUBE
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-1147 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9207592075-1906 DAMPER, 25X31X30DAMPER, 25X31X30
-
92075A92075-1907 DAMPER, 18X27X20DAMPER, 18X27X20
