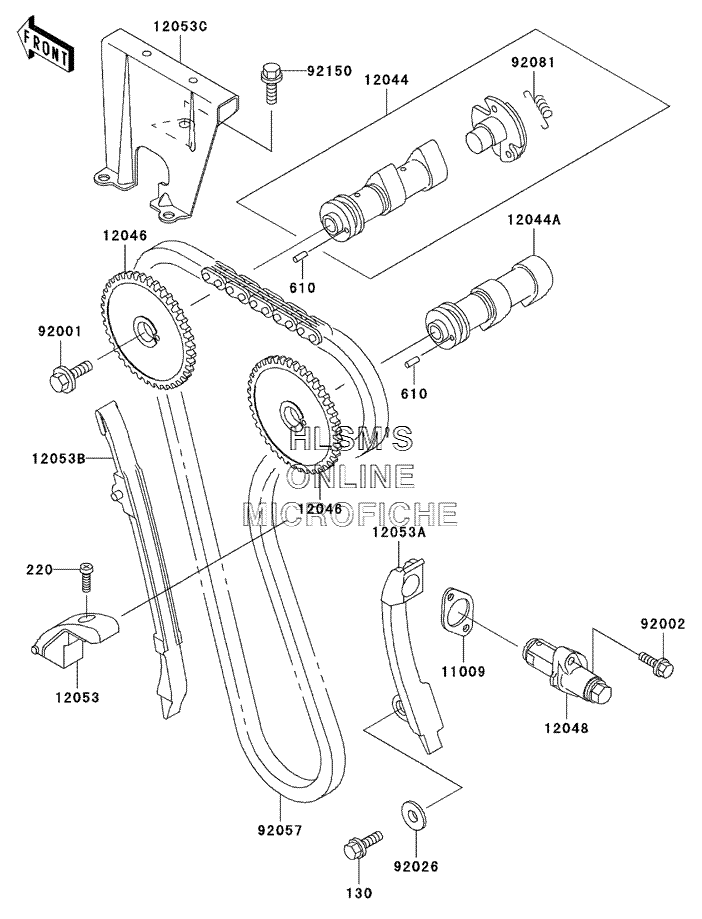

CAMSHAFT(S)/TENSIONER для Kawasaki KLR650 - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0825 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
  • 220
    220B0614 SCREW, PAN, CROS, 6X14
    SCREW, PAN, CROS, 6X14
  • 610
    610A0410 ROLLER, 4X10
    ROLLER, 4X10
  • 11009
    11009-1858 GASKET, TENSIONER
    GASKET, TENSIONER
  • 12044
    12044-1370 CAMSHAFT, VALVE, EXHAUST
    CAMSHAFT, VALVE, EXHAUST
  • 12044A
    12044-1372 CAMSHAFT, VALVE, INTAKE
    CAMSHAFT, VALVE, INTAKE
  • 12046
    12046-1160 SPROCKET (48 TEETH)
    SPROCKET (48 TEETH)
  • 12048
    12048-1094 TENSIONER, ASSY
    TENSIONER, ASSY
  • 12053
    12053-1134 GUIDE, CHAIN, LOWER
    GUIDE, CHAIN, LOWER
  • 12053A
    12053-1222 GUIDE, CHAIN, REAR
    GUIDE, CHAIN, REAR
  • 12053B
    12053-1223 GUIDE, CHAIN, FRONT
    GUIDE, CHAIN, FRONT
  • 12053C
    12053-1353 GUIDE, CHAIN, UPPER
    GUIDE, CHAIN, UPPER
  • 92001
    92001-1859 BOLT, 10X23
    BOLT, 10X23
  • 92002
    92002-1086 BOLT, 6X25
    BOLT, 6X25
  • 92026
    92026-1146 SPACER
    SPACER
  • 92057
    92057-1402 CHAIN, CAM, 92RH2015
    CHAIN, CAM, 92RH2015
  • 92081
    92081-1626 SPRING, DECOMPRESSOR
    SPRING, DECOMPRESSOR
  • 92150
    92150-1868 BOLT, 6X12
    BOLT, 6X12
