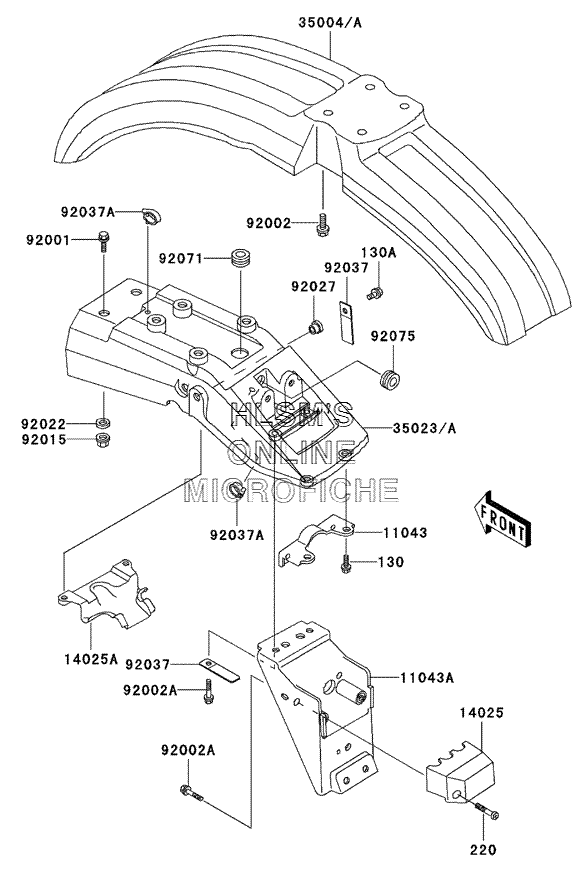

FENDER(S) для Kawasaki KLR250 - 2002 года выпуска`
-
№АртикулНазвание
-
130130D0608 BOLT, FLANGEDBOLT, FLANGED
-
130A130D0612 BOLT, FLANGEDBOLT, FLANGED
-
220220C0545 SCREW, PAN, CROSSCREW, PAN, CROS
-
1104311043-1734 BRACKET, REAR FLAPBRACKET, REAR FLAP
-
11043A11043-1827 BRACKETBRACKET
-
1402514025-1933 COVER, LICENSE PLATE LAMPCOVER, LICENSE PLATE LAMP
-
14025A14025-1982 COVER, HARNESSCOVER, HARNESS
-
35004A35004-1153-68 FENDER, FRONT (O.GREEN)FENDER, FRONT (O.GREEN)
-
35023A35023-1114-68 FENDER, REAR, REAR (O.GREEN)FENDER, REAR, REAR (O.GREEN)
-
9200192001-1773 BOLT, 6X20BOLT, 6X20
-
9200292002-1187 BOLT, 6X16BOLT, 6X16
-
92002A92002-1188 BOLT, 6X16BOLT, 6X16
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1557 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-122 COLLAR, L=4.7COLLAR, L=4.7
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9207192071-1027 GROMMETGROMMET
-
9207592075-1028 DAMPERDAMPER
