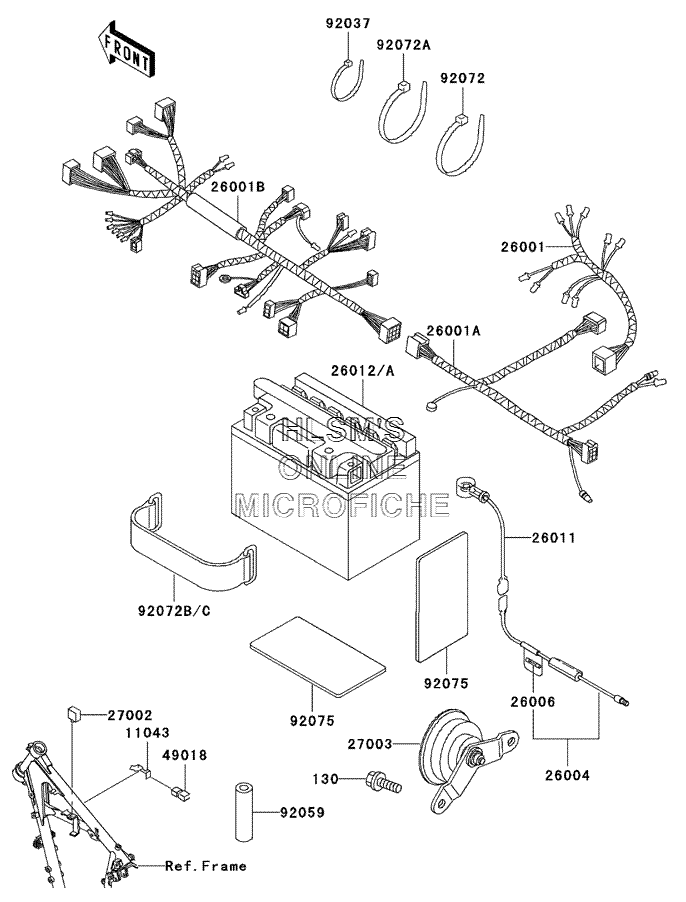

ELECTRICAL - CHASSIS для Kawasaki KLR250 - 2002 года выпуска`
-
№АртикулНазвание
-
130130D0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
1104311043-1376 BRACKET, DIODEBRACKET, DIODE
-
2600126001-1586 HARNESS, REARHARNESS, REAR
-
26001A26001-1677 HARNESS, CENTERHARNESS, CENTER
-
26001B26001-1698 HARNESS, FRONT (MAIN)HARNESS, FRONT (MAIN)
-
2600426004-1055 FUSE, ASSYFUSE, ASSY
-
2600626006-1056 FUSE, 20A, L=30FUSE, 20A, L=30
-
2601126011-1264 WIRE, LEAD, BATTERYWIRE, LEAD, BATTERY
-
26012A26012-1363 BATTERY, FB4L, A, 12V 4AHBATTERY, FB4L, A, 12V 4AH
-
2700227002-1053 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1306 HORNHORN
-
4901849018-1052 DIODEDIODE
-
9203792037-1483 CLAMP, BAND, L=120CLAMP, BAND, L=120
-
9205992059-1799 TUBE, 8X9X38TUBE, 8X9X38
-
9207292072-032 BAND, L=218BAND, L=218
-
92072A92072-056 BAND, L=186BAND, L=186
-
92072C92072-1384 BANDBAND
-
9207592075-1582 DAMPER, MATDAMPER, MAT
