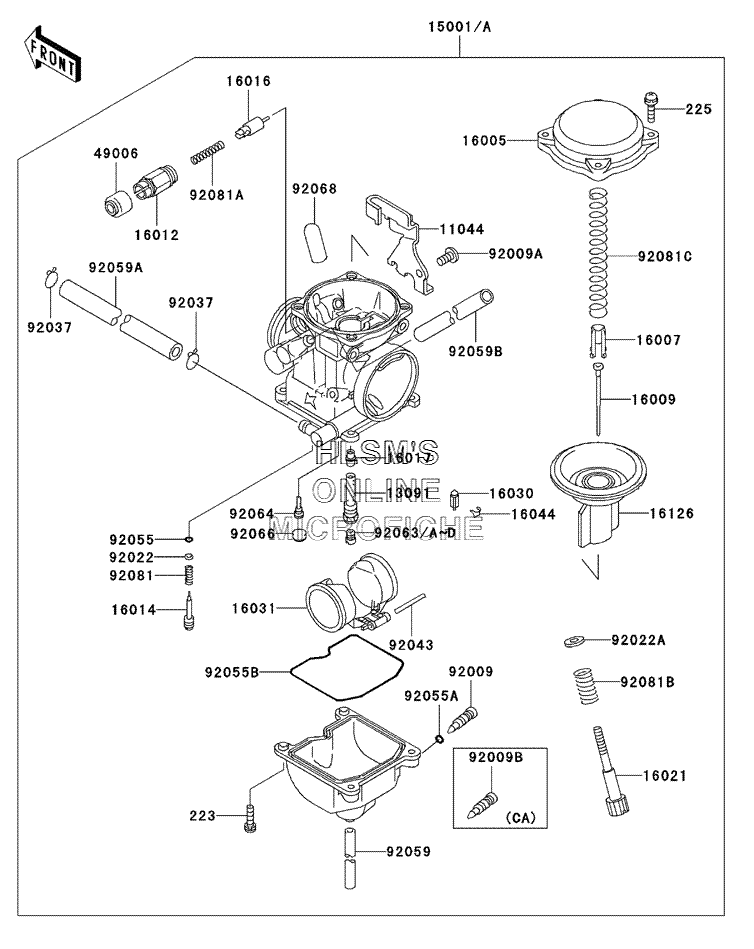

CARBURETOR для Kawasaki KLR250 - 2002 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1061 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 13091
    13091-1259 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 15001
    15001-1121 CARBURETOR, ASSY (US ONLY)
    CARBURETOR, ASSY (US ONLY)
  • 15001A
    15001-1122 CARBURETOR, ASSY (CALIF. ONLY)
    CARBURETOR, ASSY (CALIF. ONLY)
  • 16005
    16005-1057 TOP, CHAMBER, MIXING, 27/60
    TOP, CHAMBER, MIXING, 27/60
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16009
    16009-1255 NEEDLE, JET, N31C
    NEEDLE, JET, N31C
  • 16012
    16012-1055 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16014
    16014-1029 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1065 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1265 JET, NEEDLE
    JET, NEEDLE
  • 16021
    16021-1109 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16030
    16030-1007 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1056 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1163 VALVE, VACUUM
    VALVE, VACUUM
  • 49006
    49006-1165 BOOT, STARTER PLUNGER
    BOOT, STARTER PLUNGER
  • 92009
    92009-1095 SCREW, DRAIN, M6X1.0
    SCREW, DRAIN, M6X1.0
  • 92009A
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92009B
    92009-1551 SCREW, DRAIN, M6X0.75 (CALIF. ONLY)
    SCREW, DRAIN, M6X0.75 (CALIF. ONLY)
  • 92022
    92022-1003 WASHER, PLAIN
    WASHER, PLAIN
  • 92022A
    92022-1587 WASHER, THROTTLE STOP SCREW
    WASHER, THROTTLE STOP SCREW
  • 92037
    92037-1531 CLAMP, TUBE
    CLAMP, TUBE
  • 92043
    92043-1207 PIN, FLOAT
    PIN, FLOAT
  • 92055
    92055-1002 O-RING, PILOT ADJUST
    O-RING, PILOT ADJUST
  • 92055A
    92055-1053 O-RING, DRAIN SCREW
    O-RING, DRAIN SCREW
  • 92055B
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92059
    92059-111 TUBE, 3.5X6.5X330
    TUBE, 3.5X6.5X330
  • 92059A
    92059-1538 TUBE, 6.5X11.5X200
    TUBE, 6.5X11.5X200
  • 92059B
    92059-1539 TUBE, 6.5X9.5X410
    TUBE, 6.5X9.5X410
  • 92063
    92063-1071 JET, MAIN, #118
    JET, MAIN, #118
  • 92063A
    92063-1072 JET, MAIN, #120 (OFF ROAD USE ONLY)
    JET, MAIN, #120 (OFF ROAD USE ONLY)
  • 92063B
    92063-1073 JET, MAIN, #122 (OFF ROAD USE ONLY)
    JET, MAIN, #122 (OFF ROAD USE ONLY)
  • 92063C
    92063-1117 JET, MAIN, #112 (OFF ROAD USE ONLY)
    JET, MAIN, #112 (OFF ROAD USE ONLY)
  • 223
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 92063D
    92063-1118 JET, MAIN, #115 (OFF ROAD USE ONLY)
    JET, MAIN, #115 (OFF ROAD USE ONLY)
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92068
    92068-006 PLUG, 12X25 (US ONLY)
    PLUG, 12X25 (US ONLY)
  • 92081
    92081-1002 SPRING, PILOT ADJUST SCREW
    SPRING, PILOT ADJUST SCREW
  • 92081A
    92081-1720 SPRING, PLUNGER
    SPRING, PLUNGER
  • 92081B
    92081-1721 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 92081C
    92081-1826 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
