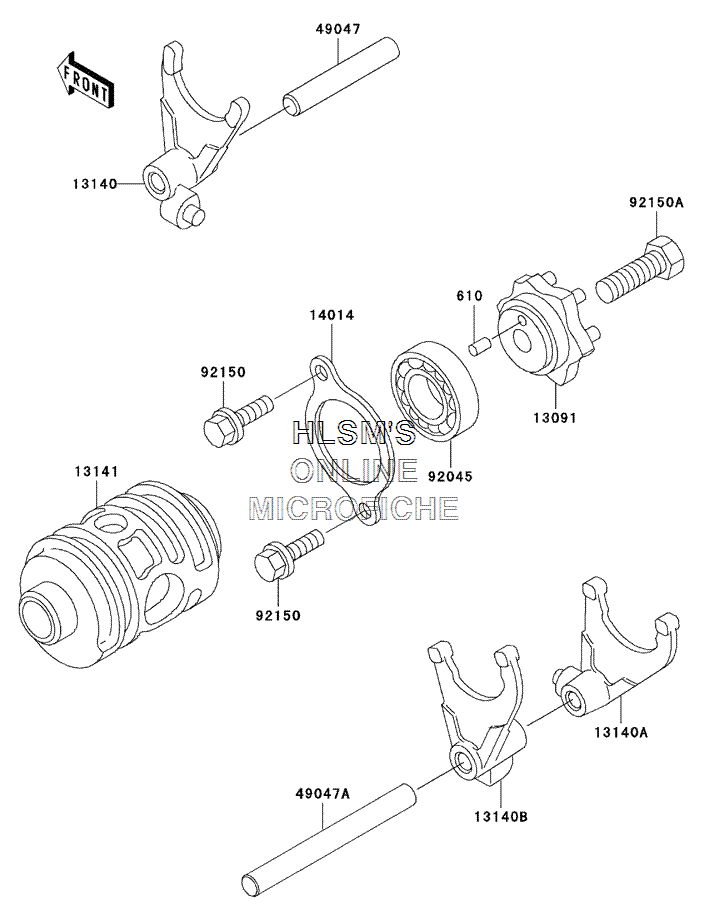

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KDX 200 - 2002 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1309113091-1364 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1074 FORK, SHIFT, 5TH AND TOPFORK, SHIFT, 5TH AND TOP
-
13140A13140-1243 FORK, SHIFT, LOW AND 4THFORK, SHIFT, LOW AND 4TH
-
13140B13140-1244 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
1314113141-1117 DRUM, CHANGEDRUM, CHANGE
-
1401414014-1020 PLATE, POSITIONPLATE, POSITION
-
4904749047-1089 ROD, SHIFT, 8X58ROD, SHIFT, 8X58
-
49047A49047-1090 ROD, SHIFT, 8X82.5ROD, SHIFT, 8X82.5
-
9204592045-1319 BEARING, BALLBEARING, BALL
-
9215092150-1868 BOLT, 6X12BOLT, 6X12
-
92150A92150-1911 BOLT, 8X25BOLT, 8X25
