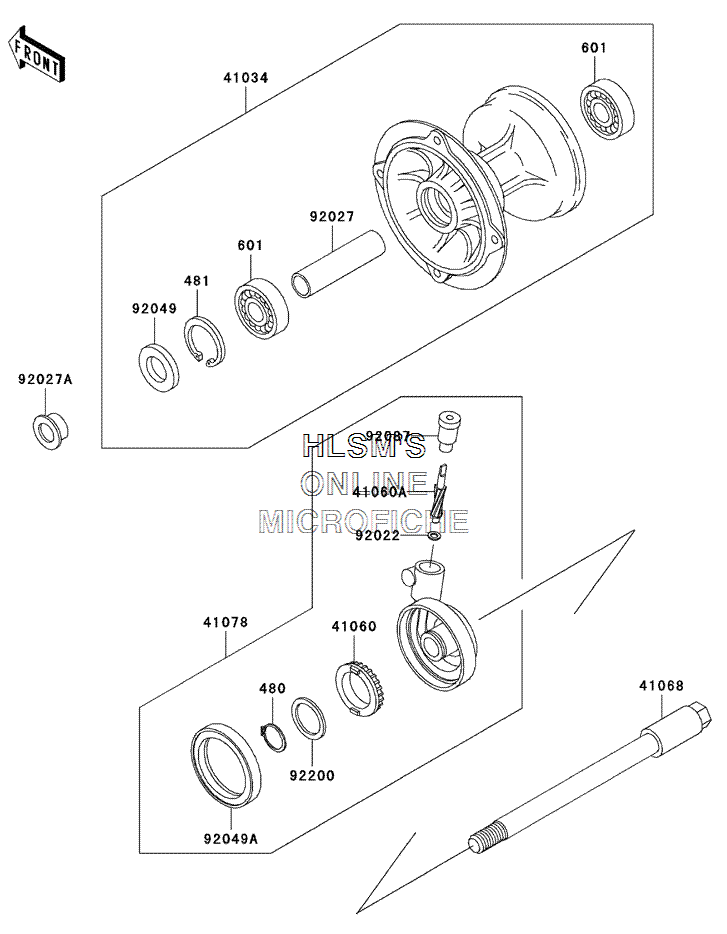

FRONT HUB для Kawasaki KDX 200 - 2002 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2400 CIRCLIP, TYPE, C, 24MM
    CIRCLIP, TYPE, C, 24MM
  • 481
    481J3500 CIRCLIP, TYPE, C, 35MM
    CIRCLIP, TYPE, C, 35MM
  • 601
    601B6202UG BEARING, BALL, #6202UG
    BEARING, BALL, #6202UG
  • 41034
    41034-1217 DRUM, ASSY, FRONT BRAKE
    DRUM, ASSY, FRONT BRAKE
  • 41060
    41060-1143 GEAR, METER SCREW (25 TEETH)
    GEAR, METER SCREW (25 TEETH)
  • 41060A
    41060-1144 GEAR, METER SCREW (8 TEETH)
    GEAR, METER SCREW (8 TEETH)
  • 41068
    41068-1352 AXLE, FRONT
    AXLE, FRONT
  • 41078
    41078-1095 CASE, ASSY, METER GEAR
    CASE, ASSY, METER GEAR
  • 92022
    92022-1511 WASHER, 5X9.5X0.8
    WASHER, 5X9.5X0.8
  • 92027
    92027-1958 COLLAR, 15.2X22.2X75
    COLLAR, 15.2X22.2X75
  • 92027A
    92027-1959 COLLAR, L=12
    COLLAR, L=12
  • 92049
    92049-1176 SEAL, OIL, MH20354.5
    SEAL, OIL, MH20354.5
  • 92049A
    92049-1399 SEAL, OIL, SDD 50 62 7
    SEAL, OIL, SDD 50 62 7
  • 92087
    92087-1060 BUSHING, METER GEAR
    BUSHING, METER GEAR
  • 92200
    92200-1137 WASHER, 24X31X0.8
    WASHER, 24X31X0.8
