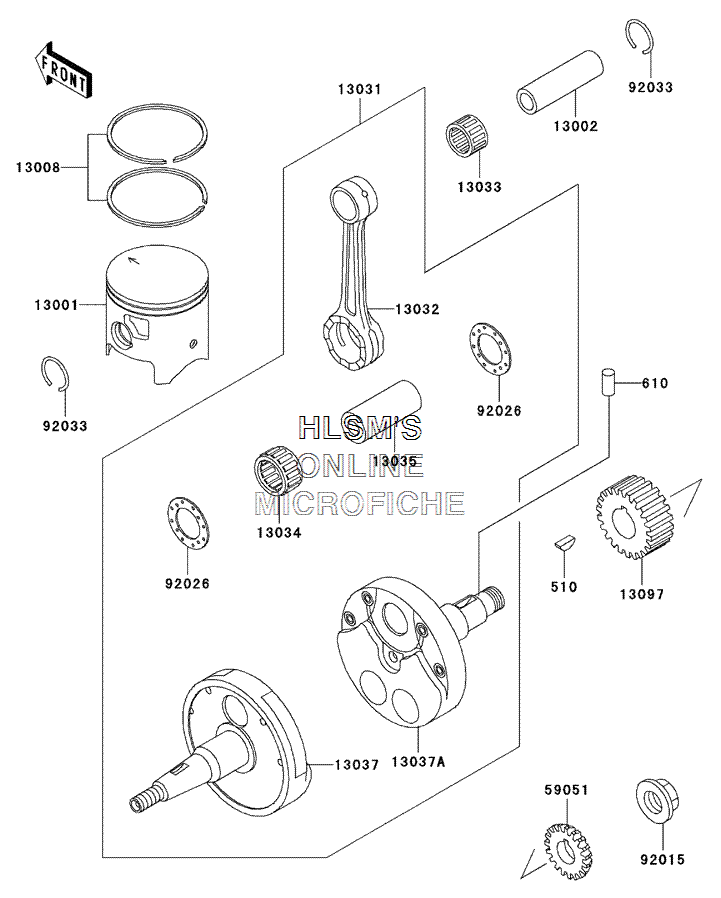

CRANKSHAFT - PISTON(S) для Kawasaki KDX 200 - 2002 года выпуска`
-
№АртикулНазвание
-
510510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1300113001-1317 PISTON, ENGINEPISTON, ENGINE
-
1300213002-1053 PIN, PISTONPIN, PISTON
-
1300813008-1116 RING, SET, PISTONRING, SET, PISTON
-
1303113031-1382 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1210 ROD, CONNECTINGROD, CONNECTING
-
1303313033-1056 BEARING, SMALL ENDBEARING, SMALL END
-
1303413034-1081 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1010 PIN, CRANKPIN, CRANK
-
1303713037-1488 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1490 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1320 GEAR, PRIMARY SPUR (22 TEETH)GEAR, PRIMARY SPUR (22 TEETH)
-
5905159051-1207 GEAR, SPUR, WATER PUMPGEAR, SPUR, WATER PUMP
-
9201592015-1581 NUT, 16MMNUT, 16MM
-
9202692026-011 SPACER, 22.5X37X1.0SPACER, 22.5X37X1.0
-
9203392033-1242 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
