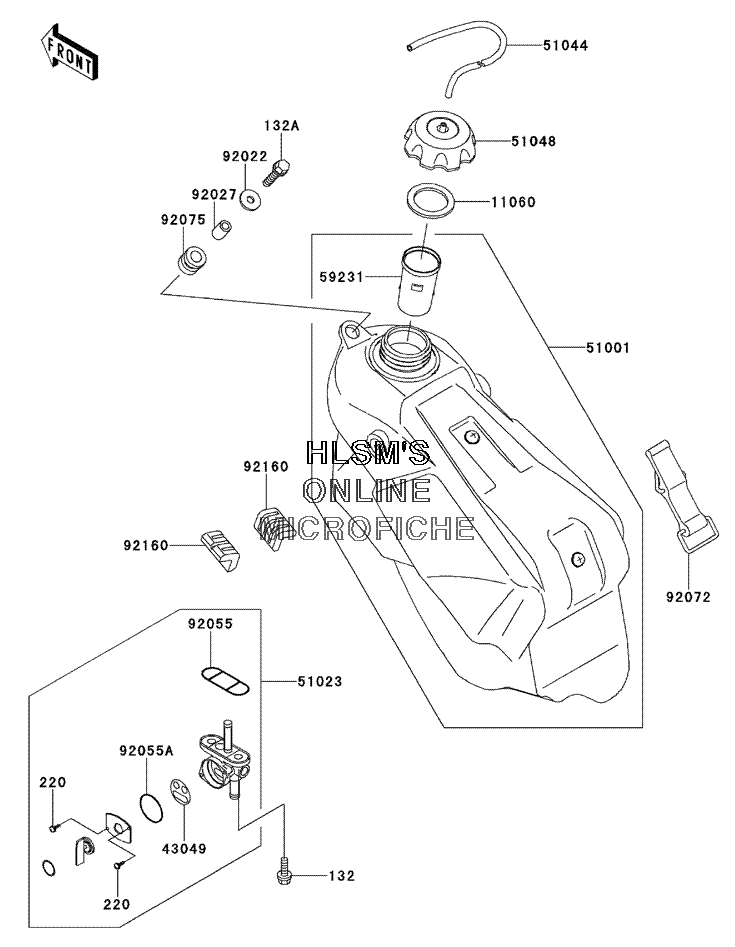

FUEL TANK для Kawasaki KX 125 - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220B0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 43049
    43049-1066 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51001
    51001-1547-6Z TANK, COMP, FUEL (F.BLACK)
    TANK, COMP, FUEL (F.BLACK)
  • 51023
    51023-1257 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51044
    51044-1185 TUBE, ASSY.
    TUBE, ASSY.
  • 51048
    51048-1124 CAP, ASSY., TANK, FUEL
    CAP, ASSY., TANK, FUEL
  • 59231
    59231-1096 FILLER
    FILLER
  • 92022
    92022-1690 WASHER, 6.5X24X2
    WASHER, 6.5X24X2
  • 92027
    92027-1966 COLLAR, 6.8X10X14
    COLLAR, 6.8X10X14
  • 92055
    92055-1348 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92055A
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-1787 DAMPER
    DAMPER
  • 92160
    92160-1221 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
