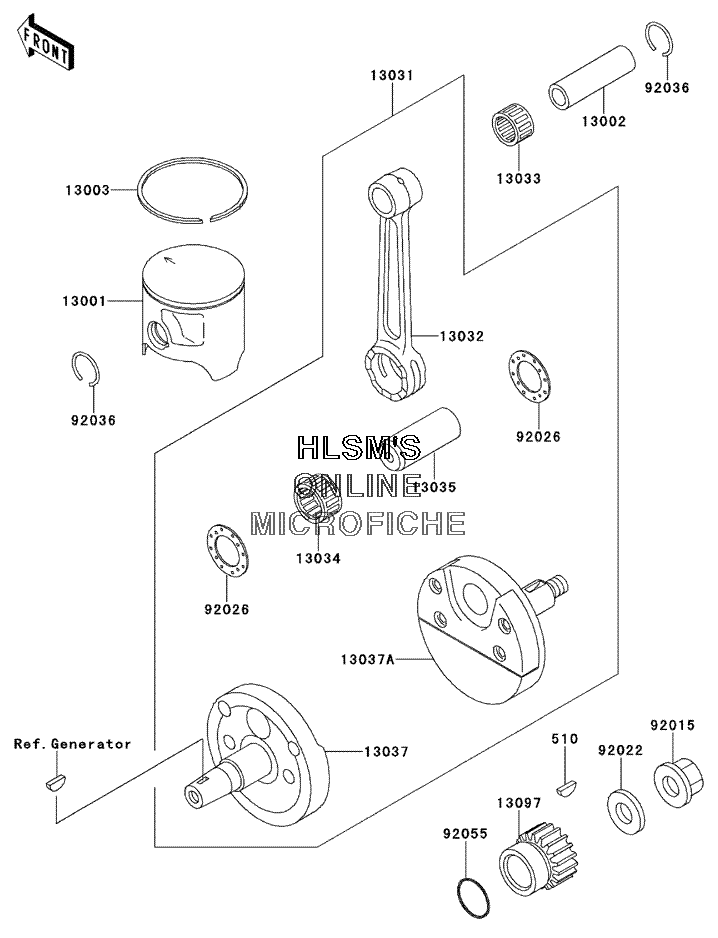

CRANKSHAFT - PISTON(S) для Kawasaki KX 125 - 2001 года выпуска`
-
№АртикулНазвание
-
510510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
1300113001-1597 PISTON, ENGINEPISTON, ENGINE
-
1300213002-1099 PIN, PISTONPIN, PISTON
-
1300313003-1356 RING, PISTON TOPRING, PISTON TOP
-
1303113031-1465 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-1253 ROD, CONNECTINGROD, CONNECTING
-
1303313033-1057 BEARING, SMALL ENDBEARING, SMALL END
-
1303413034-1099 BEARING, BIG END, B4BEARING, BIG END, B4
-
1303513035-1010 PIN, CRANKPIN, CRANK
-
1303713037-1565 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
13037A13037-1590 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1309713097-1399 GEAR, PRIMARY SPUR (20 TEETH)GEAR, PRIMARY SPUR (20 TEETH)
-
9201592015-1156 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202292022-1831 WASHERWASHER
-
9202692026-1546 SPACERSPACER
-
9203692036-005 RING, SNAPRING, SNAP
-
9205592055-086 O-RINGO-RING
