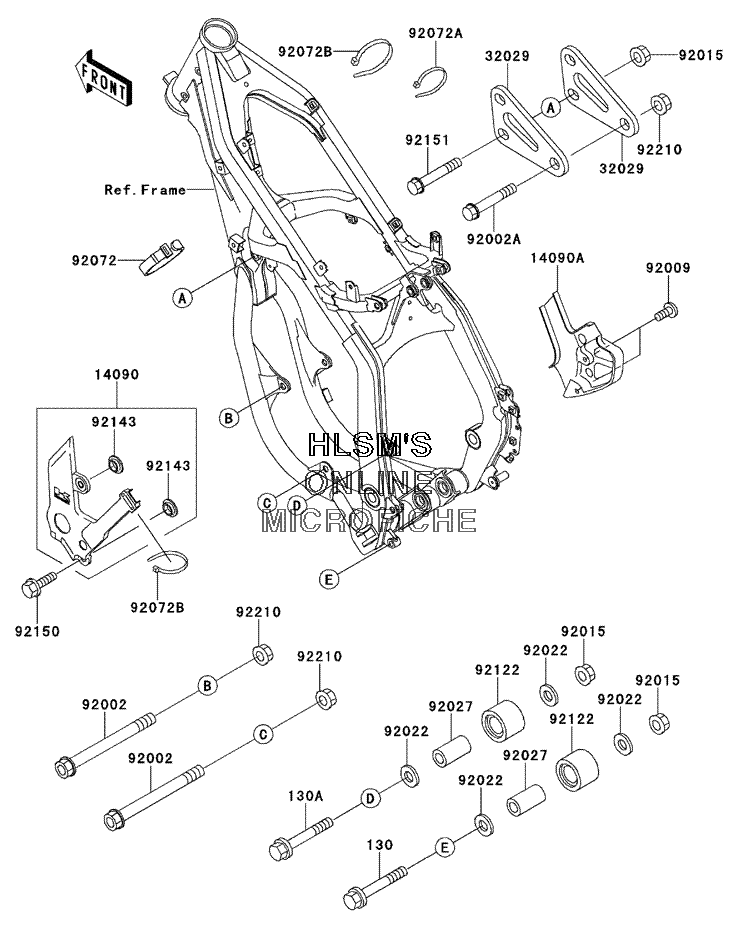

FRAME FITTING(S) для Kawasaki KX 125 - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0855 BOLT, FLANGED, 8X55
    BOLT, FLANGED, 8X55
  • 130A
    130G0860 BOLT, FLANGED, 8X60
    BOLT, FLANGED, 8X60
  • 14090
    14090-1970-6Z COVER, FRAME PIVOT (LEFT) F.BLACK
    COVER, FRAME PIVOT (LEFT) F.BLACK
  • 14090A
    14090-1971-6Z COVER, FRAME PIVOT (RIGHT) F.BLACK
    COVER, FRAME PIVOT (RIGHT) F.BLACK
  • 32029
    32029-1896 BRACKET, ENGINE
    BRACKET, ENGINE
  • 92002
    92002-1491 BOLT, FLANGED, 10X105
    BOLT, FLANGED, 10X105
  • 92002A
    92002-1936 BOLT, FLANGED, 10X53
    BOLT, FLANGED, 10X53
  • 92009
    92009-1111 SCREW, 6X18 (WHITE)
    SCREW, 6X18 (WHITE)
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92022
    92022-1629 WASHER, 8.5X22X1.5
    WASHER, 8.5X22X1.5
  • 92027
    92027-1670 COLLAR, CHAIN ROLLER
    COLLAR, CHAIN ROLLER
  • 92072
    92072-031 BAND, L=149
    BAND, L=149
  • 92072A
    92072-056 BAND, L=186
    BAND, L=186
  • 92072B
    92072-1195 BAND, L=202
    BAND, L=202
  • 92122
    92122-1153 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92151
    92151-1377 BOLT, FLANGED, 8X52
    BOLT, FLANGED, 8X52
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
