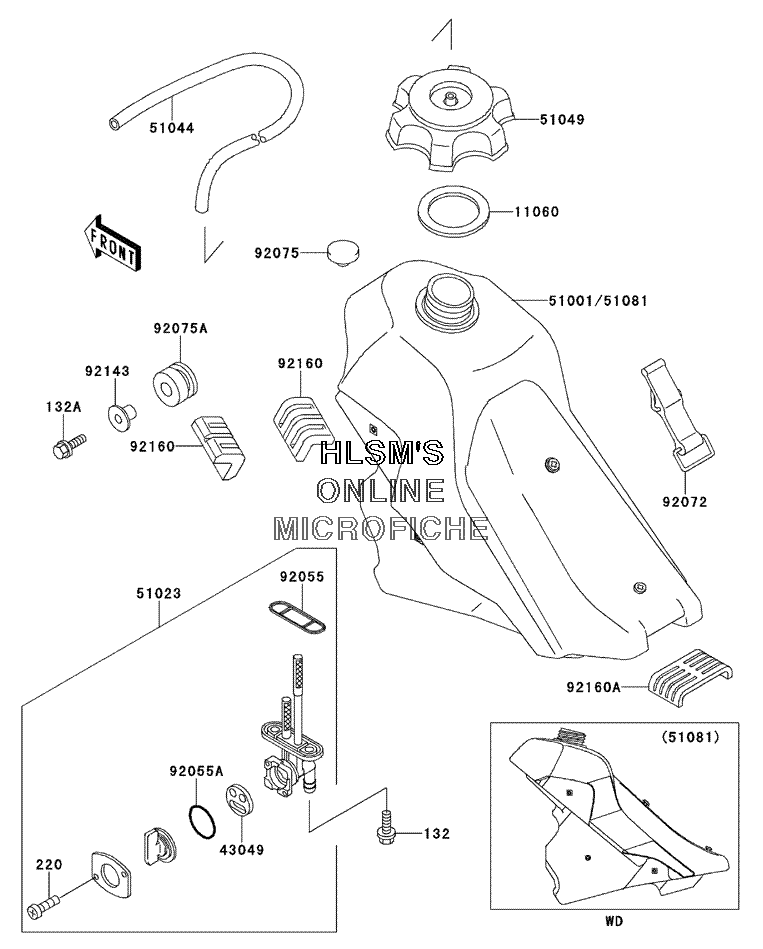

FUEL TANK для Kawasaki KLX 300R - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220B0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 11060
    11060-1340 GASKET, FUEL TANK CAP
    GASKET, FUEL TANK CAP
  • 43049
    43049-1066 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51001
    51001-1506-6W TANK, COMP, FUEL (L.GREEN)
    TANK, COMP, FUEL (L.GREEN)
  • 51023
    51023-1230 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51044
    51044-1185 TUBE, ASSY.
    TUBE, ASSY.
  • 51049
    51049-1108 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 92055
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92055A
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92072
    92072-1229 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92075
    92075-005 DAMPER
    DAMPER
  • 92075A
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92143
    92143-1353 COLLAR
    COLLAR
  • 92160
    92160-1328 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92160A
    92160-1397 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
