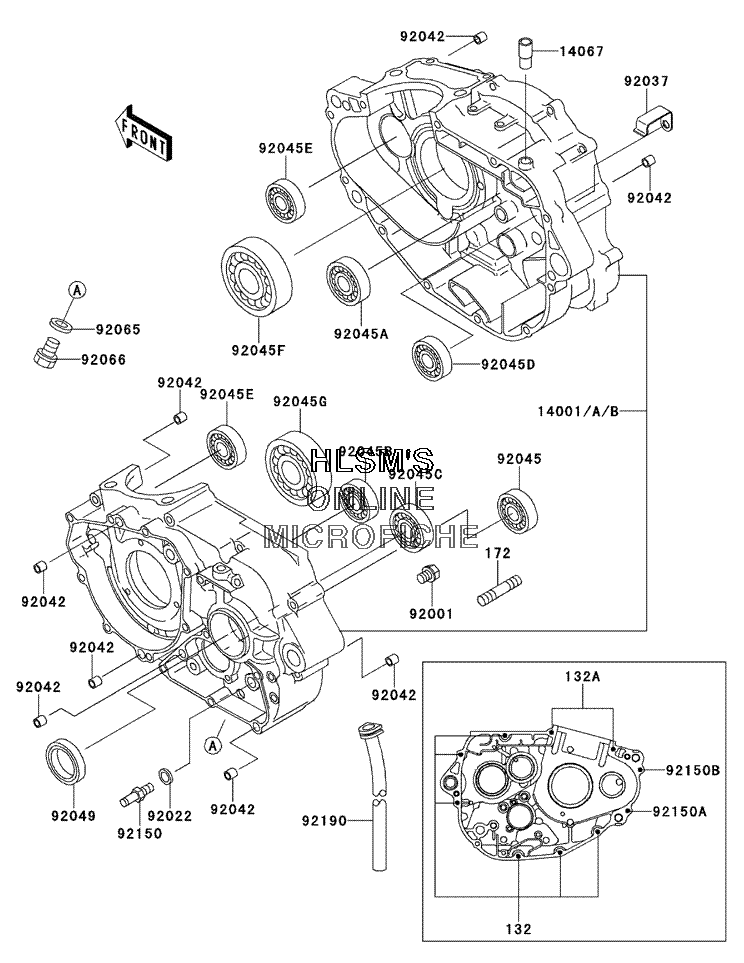

CRANKCASE для Kawasaki KLX 300R - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0650 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132Y0670 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 172
    172G0680 BOLT, STUD, 6X80
    BOLT, STUD, 6X80
  • 14001A
    14001-5355 SET, CRANKCASE
    SET, CRANKCASE
  • 14067
    14067-006 FITTING, BREATHER
    FITTING, BREATHER
  • 92001
    92001-1829 BOLT, W/WASHER, 6X14
    BOLT, W/WASHER, 6X14
  • 92022
    92022-1415 WASHER, 10.2X18X1.0, SK5
    WASHER, 10.2X18X1.0, SK5
  • 92037
    92037-1318 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92045
    92045-036 BEARING, BALL, #6905
    BEARING, BALL, #6905
  • 92045A
    92045-1041 BEARING, BALL, TMB204 JR
    BEARING, BALL, TMB204 JR
  • 92045B
    92045-1287 BEARING, BALL, TMB203LU
    BEARING, BALL, TMB203LU
  • 92045C
    92045-1288 BEARING, BALL, TMB205LU
    BEARING, BALL, TMB205LU
  • 92045D
    92045-1291 BEARING, BALL, TMB203
    BEARING, BALL, TMB203
  • 92045E
    92045-1346 BEARING, BALL, TMB302JR2
    BEARING, BALL, TMB302JR2
  • 92045F
    92045-1347 BEARING, BALL, TMB306JR2
    BEARING, BALL, TMB306JR2
  • 92045G
    92045-1348 BEARING, BALL, 3TM, 6207CJR2
    BEARING, BALL, 3TM, 6207CJR2
  • 92049
    92049-1159 SEAL, OIL, TC32457
    SEAL, OIL, TC32457
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1241 PLUG, DRAIN
    PLUG, DRAIN
  • 92150
    92150-1803 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92150A
    92150-1874 BOLT, SOCKET, 6X50
    BOLT, SOCKET, 6X50
  • 92150B
    92150-1875 BOLT, SOCKET, 6X35
    BOLT, SOCKET, 6X35
  • 92190
    92190-1493 TUBE
    TUBE
