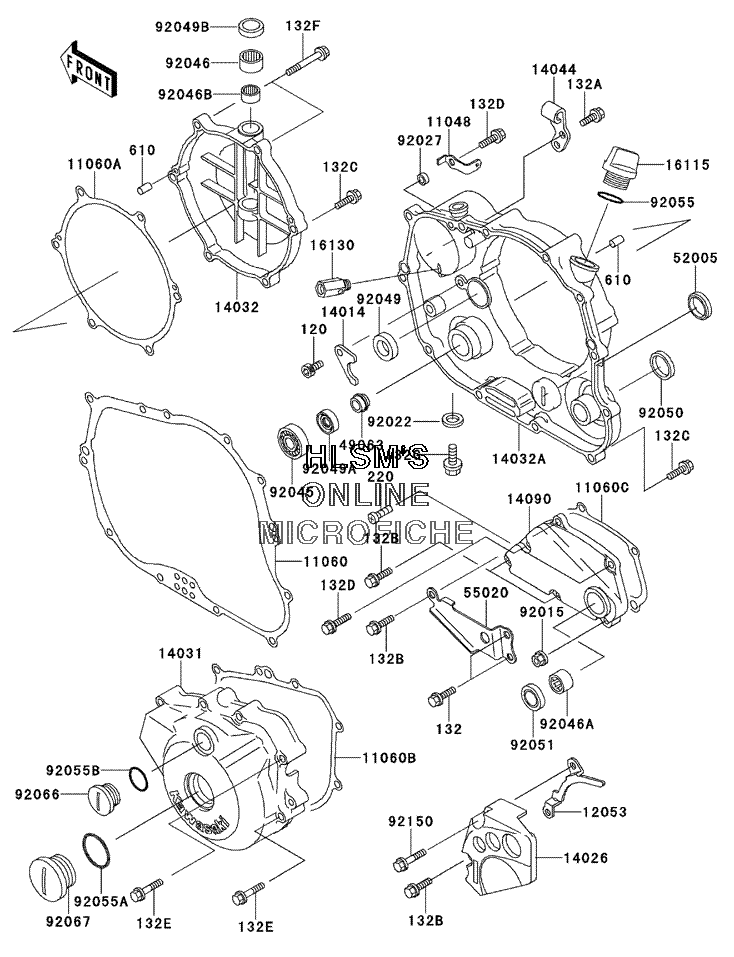

ENGINE COVER для Kawasaki KLX 300R - 2001 года выпуска
-
№АртикулНазвание
-
120120P0610 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
132132Y0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1104811048-1300 BRACKETBRACKET
-
1106011060-1324 GASKET, CLUTCH COVER INNERGASKET, CLUTCH COVER INNER
-
11060A11060-1325 GASKET, CLUTCH COVER OUTERGASKET, CLUTCH COVER OUTER
-
11060B11060-1326 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060C11060-1327 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
1205312053-1337 GUIDE, CHAINGUIDE, CHAIN
-
1401414014-1062 PLATE, POSITIONPLATE, POSITION
-
1402614026-1186 COVER, CHAINCOVER, CHAIN
-
1403114031-1301 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1335 COVER, CLUTCH, OUTERCOVER, CLUTCH, OUTER
-
14032A14032-1438 COVER, CLUTCHCOVER, CLUTCH
-
1404414044-1078 HOLDER, CABLEHOLDER, CABLE
-
1409014090-1285 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
1611516115-1053 CAP, OIL FILLERCAP, OIL FILLER
-
1613016130-1001 VALVE, ASSY., RELIEFVALVE, ASSY., RELIEF
-
4906349063-1002 SEAL, MECHANICAL, WATER PUMPSEAL, MECHANICAL, WATER PUMP
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5502055020-1460 GUARD, TRANSMISSION COVERGUARD, TRANSMISSION COVER
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1488 WASHER, 8.2X14X1.0WASHER, 8.2X14X1.0
-
9202792027-1885 COLLAR, 6.5X10.5X4.5COLLAR, 6.5X10.5X4.5
-
9204592045-1246 BEARING, BALL, 6901BEARING, BALL, 6901
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
92046A92046-1148 BEARING, NEEDLE, HK1312BEARING, NEEDLE, HK1312
-
92046B92046-1230 BEARING, NEEDLEBEARING, NEEDLE
-
9204992049-1191 SEAL, OILSEAL, OIL
-
92049A92049-1228 SEAL, OIL, AC037AE0SEAL, OIL, AC037AE0
-
92049B92049-1262 SEAL, OILSEAL, OIL
-
9205092050-078 SEAL, OILSEAL, OIL
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-012 O-RINGO-RING
-
92055A92055-091 O-RINGO-RING
-
92055B92055-1146 O-RINGO-RING
-
9206692066-1397 PLUGPLUG
-
9206792067-024 PLUG, 30X8PLUG, 30X8
-
9215092150-1137 BOLT, 6X35BOLT, 6X35
-
132C132Y0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132D132Y0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132E132Y0640 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132F132Y0670 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132G132Y0810 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220X0616 SCREW, PAN, CROSSCREW, PAN, CROS
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
