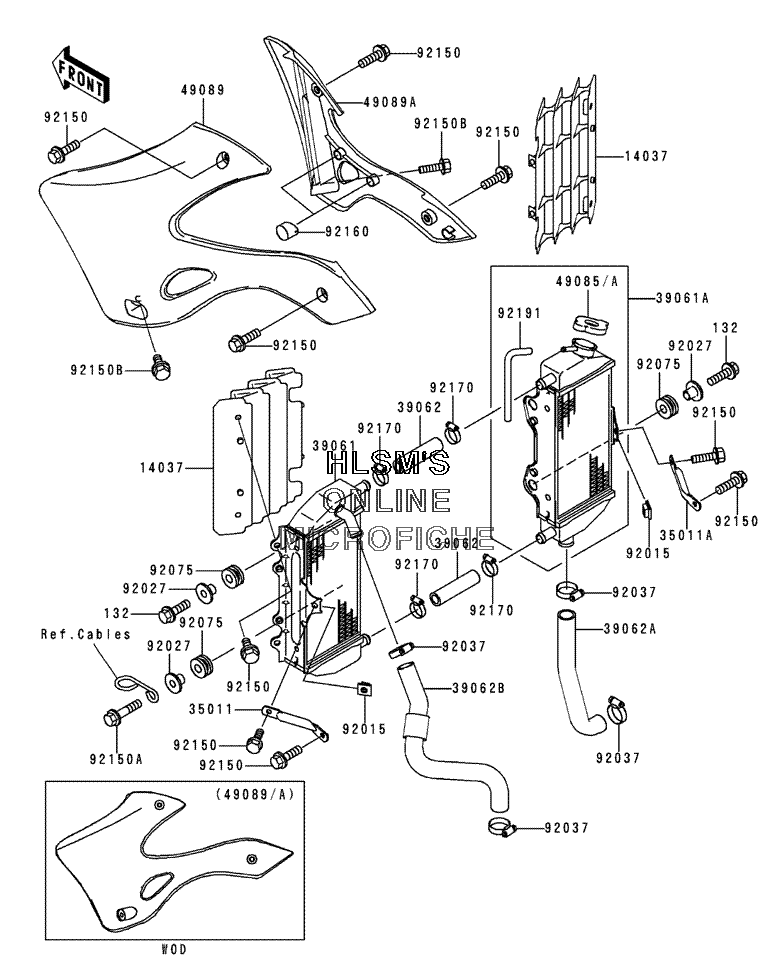

RADIATOR для Kawasaki KX 250 - 2000 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 14037
    14037-1257-RZ SCREEN (WHITE)
    SCREEN (WHITE)
  • 35011
    35011-1950 STAY (LEFT)
    STAY (LEFT)
  • 35011A
    35011-1951 STAY (RIGHT)
    STAY (RIGHT)
  • 39061
    39061-1262 RADIATOR, ASSY. (LEFT)
    RADIATOR, ASSY. (LEFT)
  • 39061A
    39061-1263 RADIATOR, ASSY. (RIGHT)
    RADIATOR, ASSY. (RIGHT)
  • 39062
    39062-1551 HOSE, COOLING, RADIATOR (LEFT) (RIGHT)
    HOSE, COOLING, RADIATOR (LEFT) (RIGHT)
  • 39062A
    39062-1555 HOSE, COOLING, RADIATOR , PUMP (RIGHT)
    HOSE, COOLING, RADIATOR , PUMP (RIGHT)
  • 39062B
    39062-1787 HOSE, COOLING, HEAD, RADIATOR
    HOSE, COOLING, HEAD, RADIATOR
  • 49085
    49085-1070 CAP, ASSY., PRESSURE, P1.1
    CAP, ASSY., PRESSURE, P1.1
  • 49085A
    49085-1073 CAP, ASSY., PRESSURE, P1.6 (OPT)
    CAP, ASSY., PRESSURE, P1.6 (OPT)
  • 49089
    49089-1140-6W SHROUD, ENGINE (LEFT) (L.GREEN)
    SHROUD, ENGINE (LEFT) (L.GREEN)
  • 49089A
    49089-1141-6W SHROUD, ENGINE (RIGHT) (L.GREEN)
    SHROUD, ENGINE (RIGHT) (L.GREEN)
  • 92015
    92015-1487 NUT
    NUT
  • 92027
    92027-194 COLLAR, L=11.1
    COLLAR, L=11.1
  • 92037
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92150A
    92150-1507 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92150B
    92150-1801 BOLT, 6X20
    BOLT, 6X20
  • 92160
    92160-1949 DAMPER
    DAMPER
  • 92170
    92170-1283 CLAMP
    CLAMP
  • 92191
    92191-1211 TUBE, 6X9X700
    TUBE, 6X9X700
