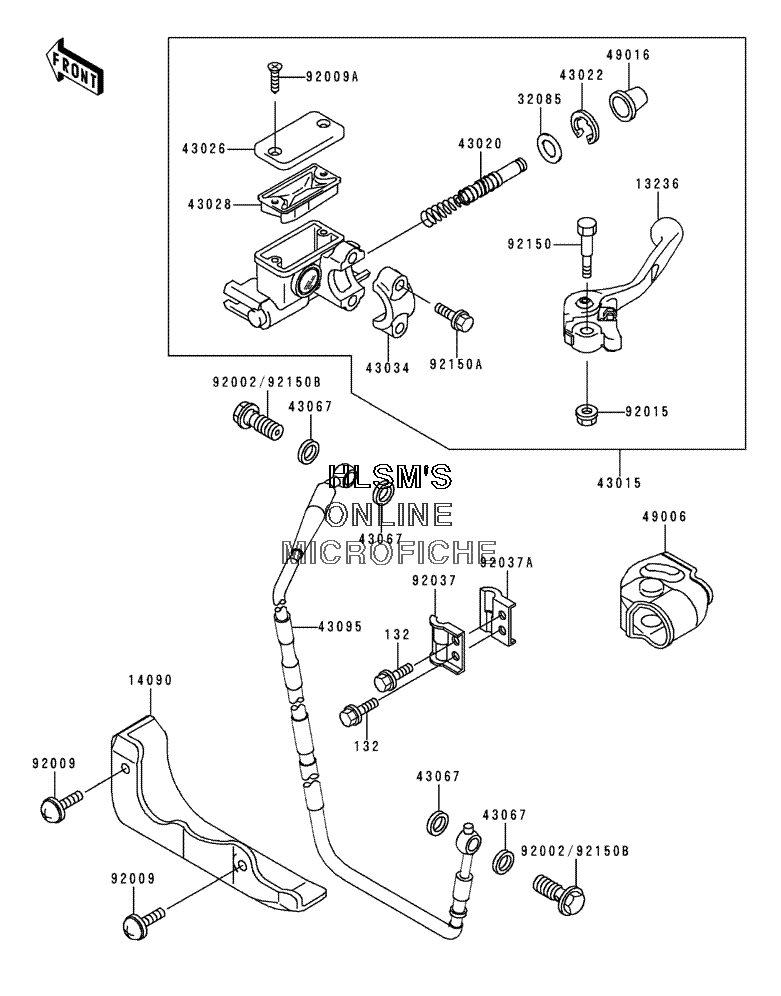

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX 250 - 2000 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0616 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 13236
    13236-1346 LEVER, COMP, FRONT BRAKE
    LEVER, COMP, FRONT BRAKE
  • 14090
    14090-1972-RZ COVER, FRONT AXLE (WHITE)
    COVER, FRONT AXLE (WHITE)
  • 32085
    32085-1508 STOPPER
    STOPPER
  • 43015
    43015-1654 CYLINDER, ASSY., MASTER, FRONT
    CYLINDER, ASSY., MASTER, FRONT
  • 43020
    43020-1121 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1075 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1067 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1110 HOLDER, BRAKE
    HOLDER, BRAKE
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1132 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 49006
    49006-1344 BOOT, FRONT BRAKE LEVER
    BOOT, FRONT BRAKE LEVER
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92009
    92009-1287 SCREW, 6X14 (WHITE)
    SCREW, 6X14 (WHITE)
  • 92009A
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92037
    92037-1362 CLAMP, BRAKE HOSE, OUTSIDE
    CLAMP, BRAKE HOSE, OUTSIDE
  • 92037A
    92037-1363 CLAMP, BRAKE HOSE, INSIDE
    CLAMP, BRAKE HOSE, INSIDE
  • 92150
    92150-1451 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92150A
    92150-1452 BOLT
    BOLT
  • 92150B
    92150-1886 BOLT, OIL, L=23 (OPT)
    BOLT, OIL, L=23 (OPT)
