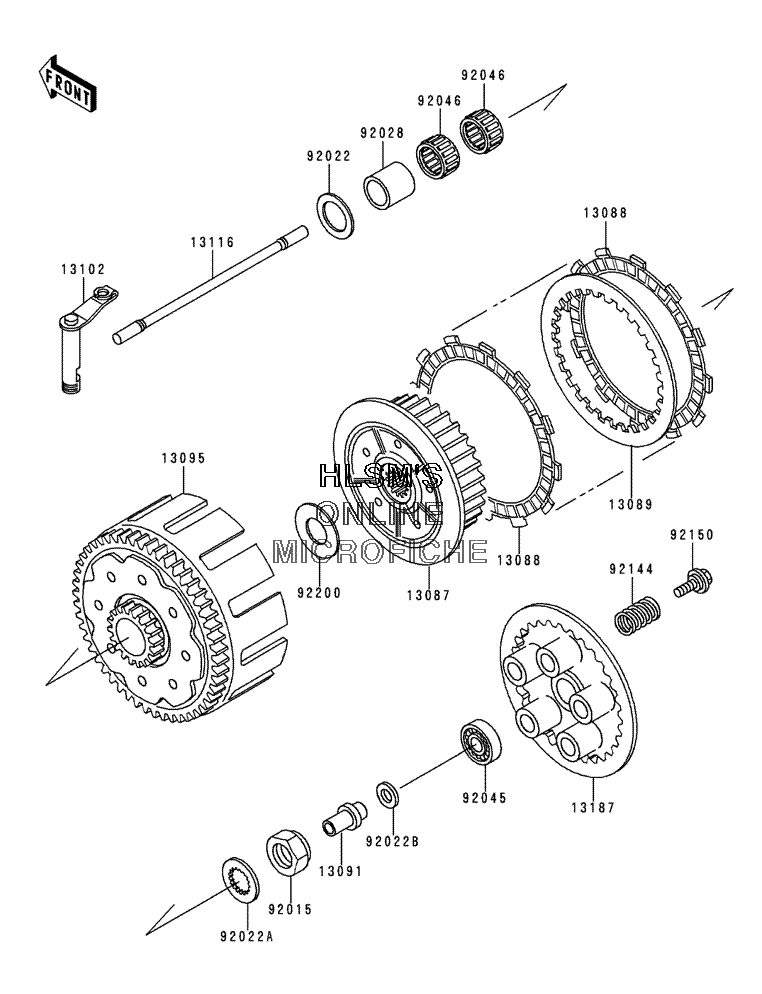

CLUTCH для Kawasaki KX 250 - 2000 года выпуска
-
№АртикулНазвание
-
1308713087-1168 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1105 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1066 PLATE, CLUTCHPLATE, CLUTCH
-
1309113091-1762 HOLDERHOLDER
-
1309513095-1368 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1146 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1311613116-1162 ROD, PUSHROD, PUSH
-
1318713187-1012 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
9201592015-1725 NUT, 20MMNUT, 20MM
-
9202292022-1075 WASHER, 25.5X38X2WASHER, 25.5X38X2
-
92022A92022-1942 WASHERWASHER
-
92022B92022-269 WASHER, 12.3X20X0.5WASHER, 12.3X20X0.5
-
9202892028-1702 BUSHINGBUSHING
-
9204592045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9204692046-1222 BEARING, NEEDLE, K30X34X13.8BEARING, NEEDLE, K30X34X13.8
-
9214492144-1351 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1489 BOLT, 6X22BOLT, 6X22
-
9220092200-1143 WASHER, 22.5X47X2WASHER, 22.5X47X2
