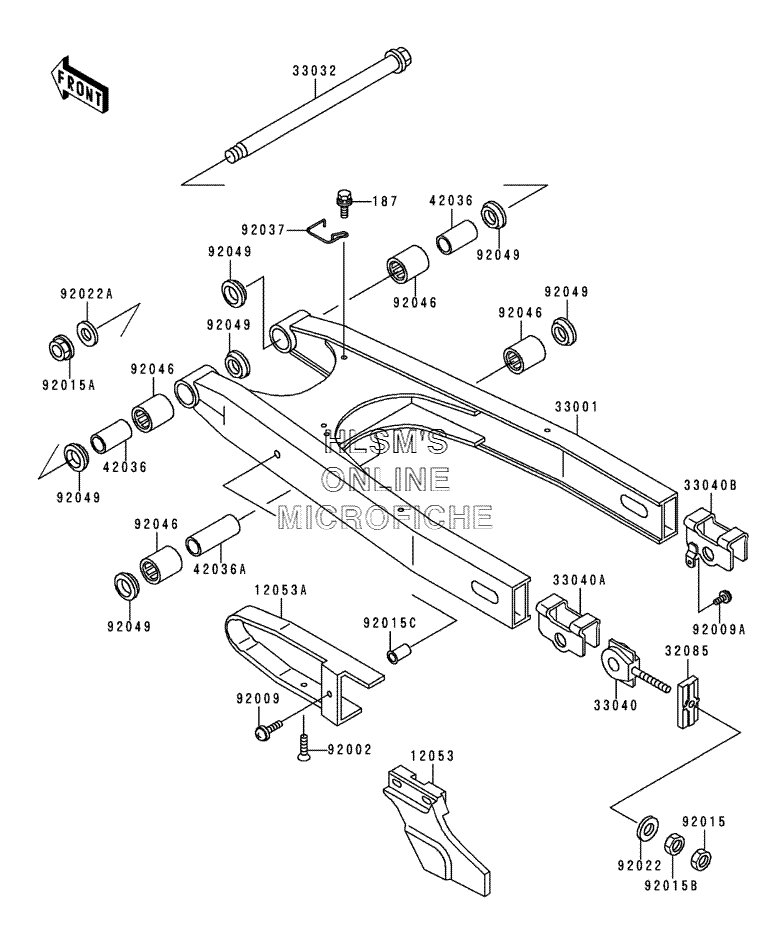

SUSPENSION - SWINGARM для Kawasaki KLR650 - 2000 года выпуска

  • №
    Артикул
    Название
  • 187
    187D0616 BOLT, UPSET, WSP
    BOLT, UPSET, WSP
  • 12053
    12053-1104 GUIDE, CHAIN, REAR
    GUIDE, CHAIN, REAR
  • 12053A
    12053-1360 GUIDE, CHAIN, DRIVE, FRONT
    GUIDE, CHAIN, DRIVE, FRONT
  • 32085
    32085-1256 STOPPER, CHAIN ADJUSTER
    STOPPER, CHAIN ADJUSTER
  • 33001
    33001-1278-CE ARM, COMP, SWING (SILVER NO.25)
    ARM, COMP, SWING (SILVER NO.25)
  • 33032
    33032-1128 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1075 ADJUSTER, CHAIN, INNER
    ADJUSTER, CHAIN, INNER
  • 33040A
    33040-1076 ADJUSTER, CHAIN, OUTER
    ADJUSTER, CHAIN, OUTER
  • 33040B
    33040-1078 ADJUSTER, CHAIN, OUTER
    ADJUSTER, CHAIN, OUTER
  • 42036
    42036-1204 SLEEVE, 15X20X47.5
    SLEEVE, 15X20X47.5
  • 42036A
    42036-1205 SLEEVE, 15X20X82
    SLEEVE, 15X20X82
  • 92002
    92002-1775 BOLT, 6MM
    BOLT, 6MM
  • 92009
    92009-1181 SCREW, 6X18 (BLACK)
    SCREW, 6X18 (BLACK)
  • 92009A
    92009-1651 SCREW, 5X10
    SCREW, 5X10
  • 92015
    92015-1364 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1459 NUT, 14MM
    NUT, 14MM
  • 92015B
    92015-1658 NUT, 8MM
    NUT, 8MM
  • 92015C
    92015-1796 NUT, CRIMP 6MM
    NUT, CRIMP 6MM
  • 92022
    92022-1582 WASHER, 8.5X16X1.2
    WASHER, 8.5X16X1.2
  • 92022A
    92022-1701 WASHER, 16X32X3.2
    WASHER, 16X32X3.2
  • 92037
    92037-1902 CLAMP, HOSE
    CLAMP, HOSE
  • 92046
    92046-1110 BEARING, NEEDLE, BM202726
    BEARING, NEEDLE, BM202726
  • 92049
    92049-1109 SEAL, OIL, ARM, CENTER
    SEAL, OIL, ARM, CENTER
