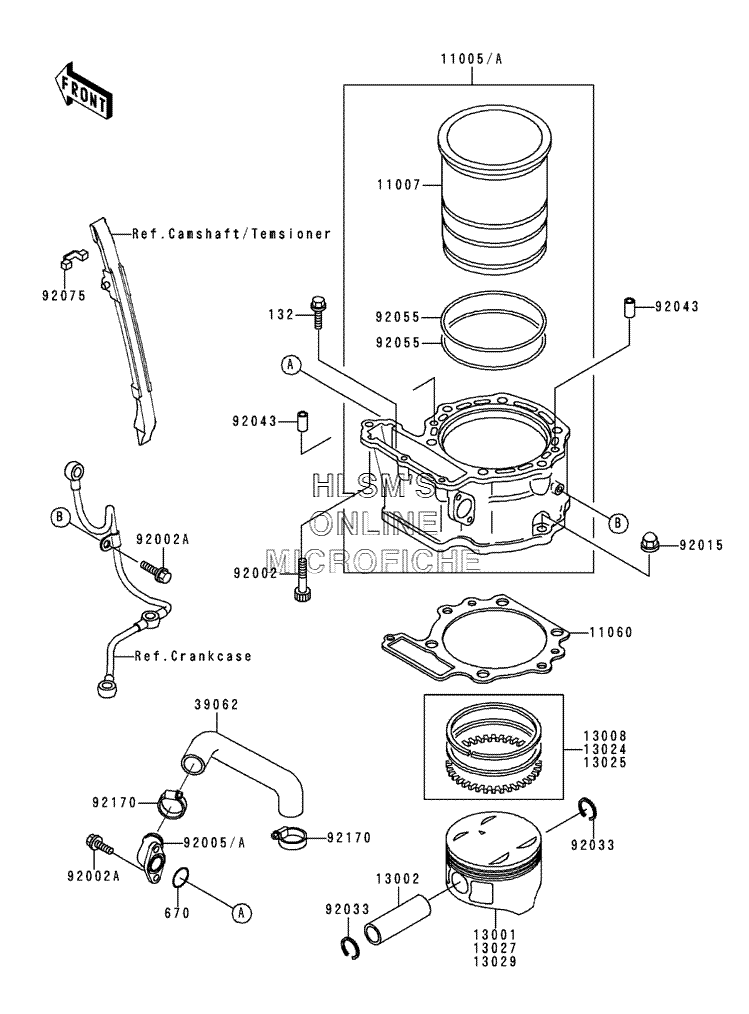

CYLINDER - PISTON(S) для Kawasaki KLR650 - 2000 года выпуска`
-
№АртикулНазвание
-
132132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B2018 O-RING, 18MMO-RING, 18MM
-
1100511005-1781 CYLINDER, ENGINECYLINDER, ENGINE
-
1100711007-1137 LINER, CYLINDERLINER, CYLINDER
-
1106011060-1110 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1284 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1101 PIN, PISTONPIN, PISTON
-
1300813008-1081 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302413024-1071 RING, SET, PISTON (O/S 1.00)RING, SET, PISTON (O/S 1.00)
-
1302513025-1078 RING, SET, PISTON (O/S 0.50)RING, SET, PISTON (O/S 0.50)
-
1302713027-1153 PISTON, ENGINE (O/S 1.00)PISTON, ENGINE (O/S 1.00)
-
1302913029-1176 PISTON, ENGINE (O/S 0.50)PISTON, ENGINE (O/S 0.50)
-
3906239062-1216 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
9200292002-1409 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
92005A92005-1279 FITTINGFITTING
-
9201592015-1982 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203392033-1226 RING, SNAPRING, SNAP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9205592055-1371 O-RING, 110.5X2.5O-RING, 110.5X2.5
-
9207592075-1968 DAMPERDAMPER
-
9217092170-1033 CLAMP, COOLING HOSECLAMP, COOLING HOSE
