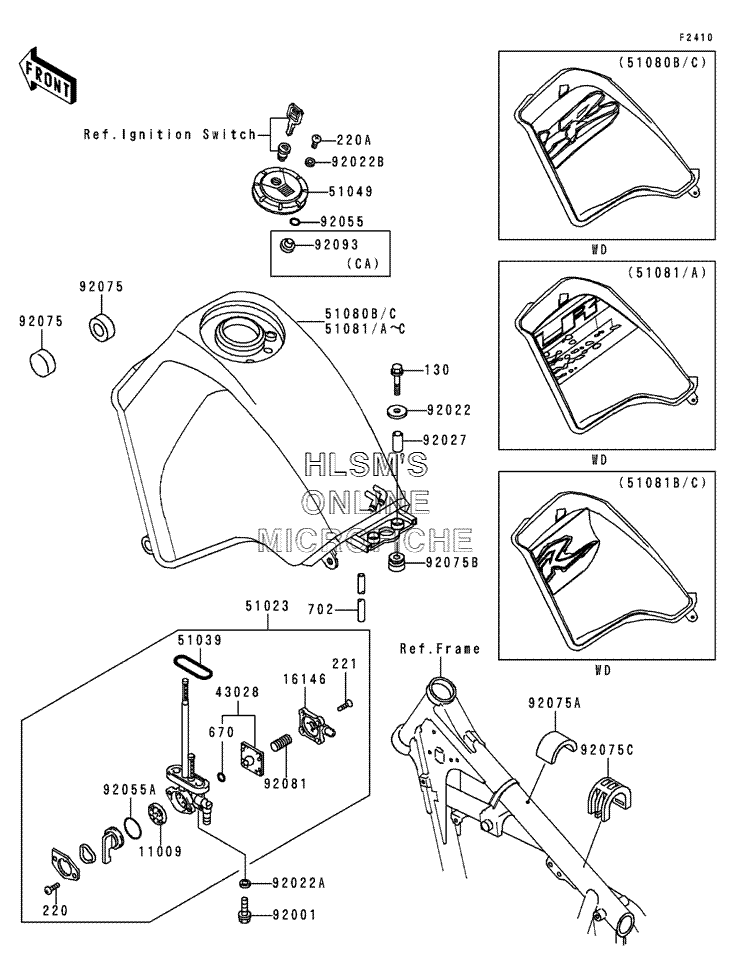

FUEL TANK для Kawasaki KLR650 - 2000 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1188 GASKET, TAP VALVE
    GASKET, TAP VALVE
  • 16146
    16146-1010 COVER, ASSY, TAP DIAPHRAGM
    COVER, ASSY, TAP DIAPHRAGM
  • 43028
    43028-1033 DIAPHRAGM
    DIAPHRAGM
  • 51023
    51023-1148 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049
    51049-1077 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 130
    130J0630 BOLT, FLANGED, 6X30 (BLACK)
    BOLT, FLANGED, 6X30 (BLACK)
  • 220
    220B0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220D0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 221
    221B0414 SCREW, CSK, CROS, 4X14
    SCREW, CSK, CROS, 4X14
  • 670
    670B1504 O-RING, 4MM
    O-RING, 4MM
  • 702
    702A05620 TUBE, RUBBER, 5X8X620 (EXCEPT CALIF.)
    TUBE, RUBBER, 5X8X620 (EXCEPT CALIF.)
  • 51081B
    51081-5193-HA TANK, COMP, FUEL (O.GREEN) (EXCEPT CALIF.)
    TANK, COMP, FUEL (O.GREEN) (EXCEPT CALIF.)
  • 51081C
    51081-5194-HA TANK, COMP, FUEL (O.GREEN) (CALIF. ONLY)
    TANK, COMP, FUEL (O.GREEN) (CALIF. ONLY)
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92022
    92022-125 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92022A
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92022B
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1856 COLLAR, 6.8X10X20
    COLLAR, 6.8X10X20
  • 92055
    92055-1023 O-RING
    O-RING
  • 92055A
    92055-1085 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92075
    92075-101 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1507 DAMPER
    DAMPER
  • 92075B
    92075-1660 DAMPER
    DAMPER
  • 92075C
    92075-1862 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92081
    92081-1240 SPRING, TAP DIAPHRAGM
    SPRING, TAP DIAPHRAGM
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
