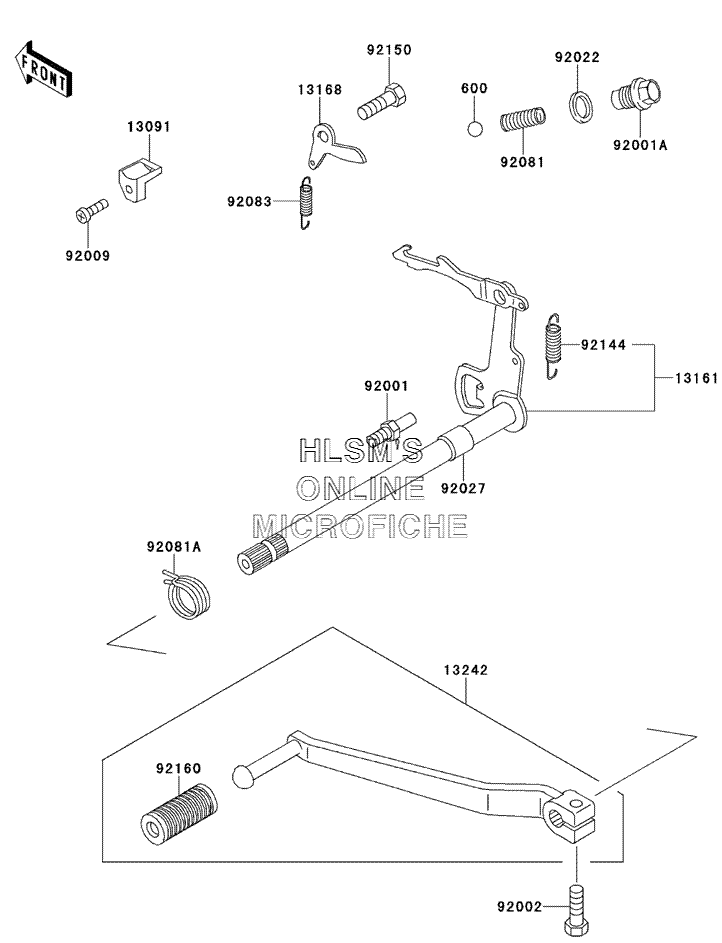

GEAR CHANGE MECHANISM для Kawasaki KE100 - 2000 года выпуска`
-
№АртикулНазвание
-
600600A1300 BALL, STEEL, 13/32"BALL, STEEL, 13/32"
-
1309113091-1350 HOLDERHOLDER
-
1316113161-1197 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316813168-1046 LEVER, GEAR CHANGE DRUMLEVER, GEAR CHANGE DRUM
-
1324213242-004 LEVER, ASSY., CHANGELEVER, ASSY., CHANGE
-
9200192001-1455 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92001A92001-1934 BOLT, 16X28.5BOLT, 16X28.5
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9200992009-1266 SCREWSCREW
-
9202292022-324 WASHER, 16.5X23X2WASHER, 16.5X23X2
-
9202792027-121 COLLAR, 12X18X11.5COLLAR, 12X18X11.5
-
9208192081-112 SPRINGSPRING
-
92081A92081-1129 SPRING, TENSIONSPRING, TENSION
-
9208392083-012 SPRING, CHANGE DRUM LEVERSPRING, CHANGE DRUM LEVER
-
9214492144-1720 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9215092150-1450 BOLT, CHANGE DRUM LEVERBOLT, CHANGE DRUM LEVER
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
