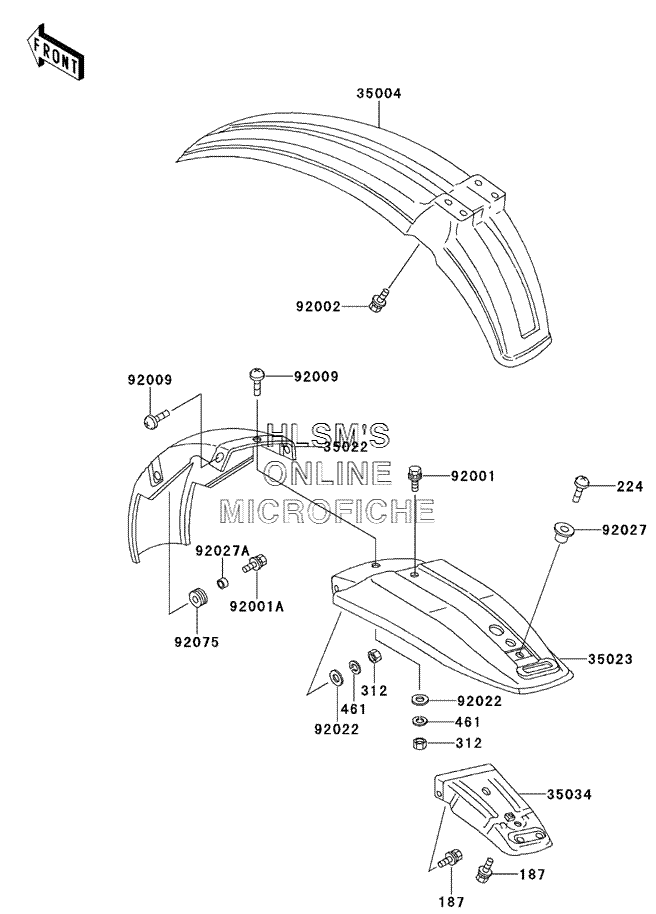

FENDER(S) для Kawasaki KE100 - 2000 года выпуска`
-
№АртикулНазвание
-
187187B0612 BOLT, UPSET, WSPBOLT, UPSET, WSP
-
224224B0614 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
312312B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
3500435004-1072-6W FENDER, FRONT (L.GREEN)FENDER, FRONT (L.GREEN)
-
3502235022-064 FENDER, COMP, REAR, FRONTFENDER, COMP, REAR, FRONT
-
3502335023-1039-6W FENDER, REAR (L.GREEN)FENDER, REAR (L.GREEN)
-
3503435034-1075 REINFORCEREINFORCE
-
9200192001-1761 BOLT, 6X12BOLT, 6X12
-
92001A92001-1763 BOLT, W/SP, 6X16BOLT, W/SP, 6X16
-
9200292002-1075 BOLT, 6X16BOLT, 6X16
-
9200992009-1281 SCREW, 6X14SCREW, 6X14
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-1018 COLLAR, L=3.5COLLAR, L=3.5
-
92027A92027-103 COLLAR, 6.8X10X6COLLAR, 6.8X10X6
-
9207592075-105 DAMPERDAMPER
