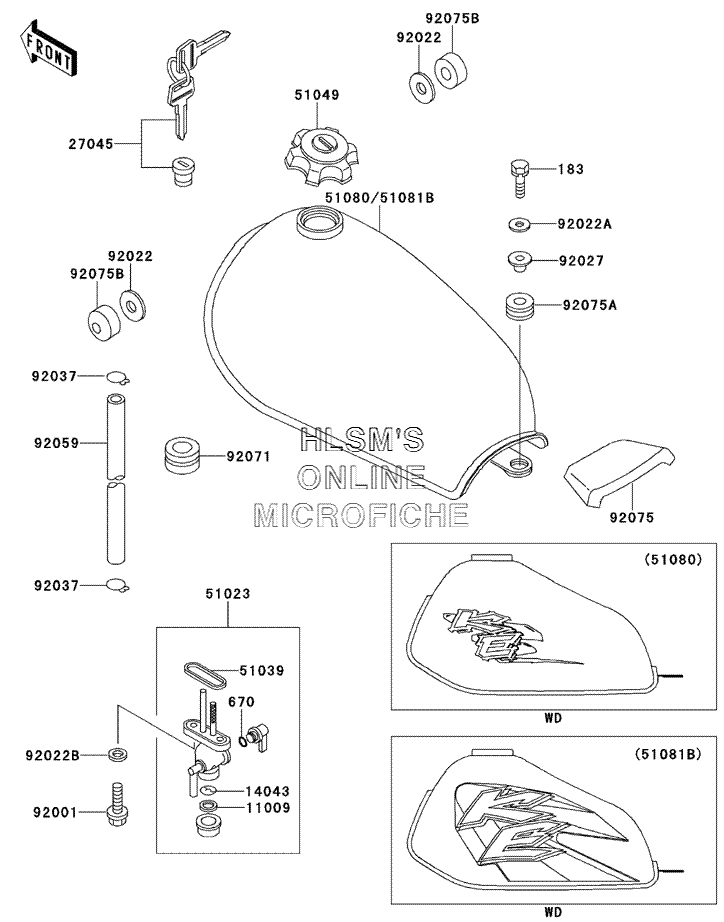

FUEL TANK для Kawasaki KE100 - 2000 года выпуска

  • №
    Артикул
    Название
  • 183
    183B0835 BOLT, UPSET, WS, SMALL
    BOLT, UPSET, WS, SMALL
  • 670
    670B2010 O-RING, 10MM
    O-RING, 10MM
  • 11009
    11009-1013 GASKET, FUEL TAP CUP
    GASKET, FUEL TAP CUP
  • 14043
    14043-1002 FILTER, FUEL TAP
    FILTER, FUEL TAP
  • 27045
    27045-5024 SWITCH, ASSY., TANK CAP
    SWITCH, ASSY., TANK CAP
  • 51023
    51023-1020 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049
    51049-1105 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51081B
    51081-5122-7F TANK, COMP, FUEL (L.GREEN)
    TANK, COMP, FUEL (L.GREEN)
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92022
    92022-044 WASHER, 10.5X26X2.3
    WASHER, 10.5X26X2.3
  • 92022A
    92022-092 WASHER, 8.5X26X1.6
    WASHER, 8.5X26X1.6
  • 92022B
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92027
    92027-223 COLLAR, 12.7X15.9X19
    COLLAR, 12.7X15.9X19
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92059
    92059-063 TUBE, 4.5X9X310
    TUBE, 4.5X9X310
  • 92071
    92071-038 GROMMET, PIPE
    GROMMET, PIPE
  • 92075
    92075-106 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1086 DAMPER
    DAMPER
  • 92075B
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
