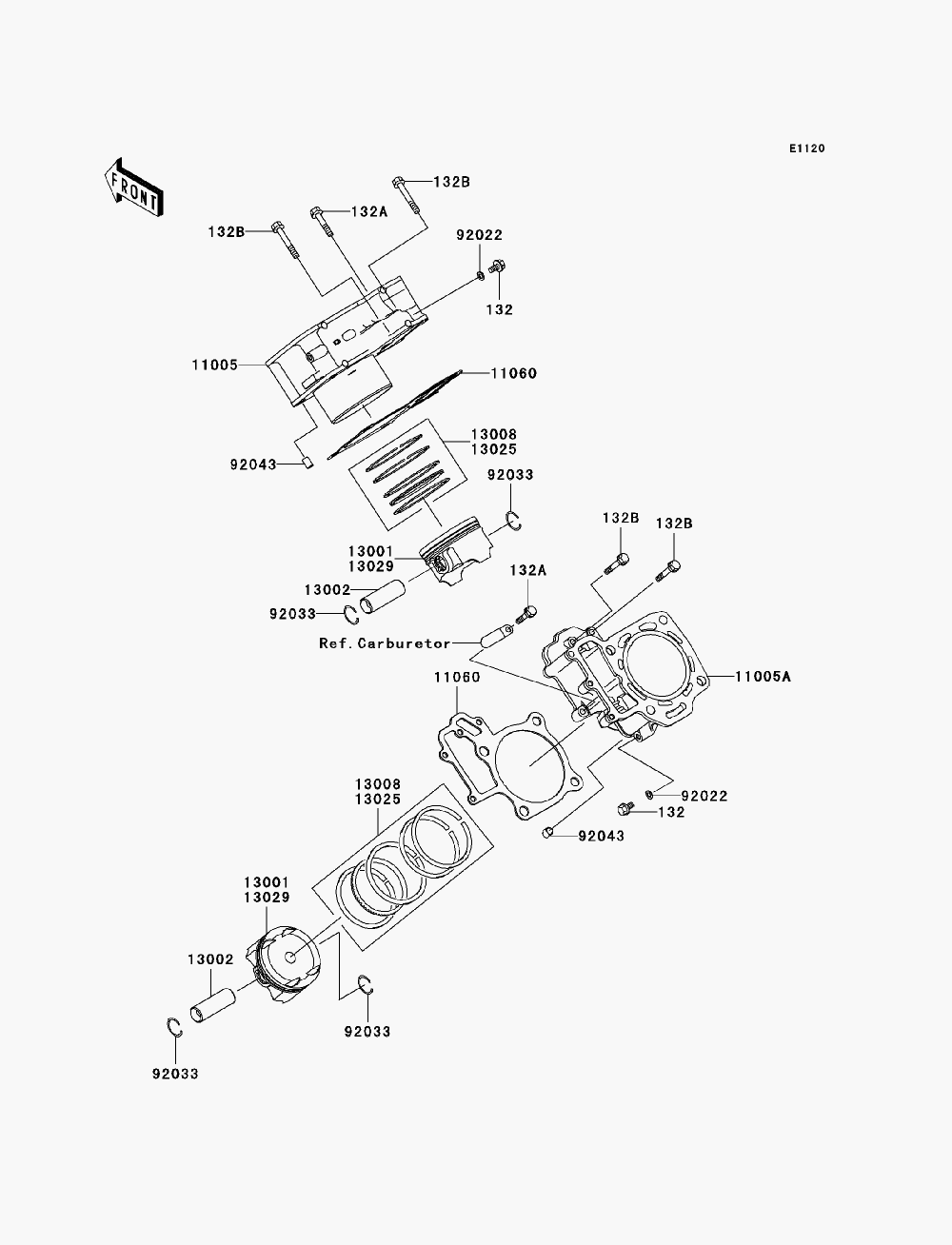

CYLINDER/PISTON(S) для Kawasaki KFX700 (KSV700B8F) - 2008 года выпуска`
-
№АртикулНазвание
-
132132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132B132BD0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
1100511005-1990 CYLINDER-ENGINE, FRONTCYLINDER-ENGINE, FRONT
-
11005A11005-1992 CYLINDER-ENGINE, REARCYLINDER-ENGINE, REAR
-
1106011060-1965 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-1658 PISTON-ENGINE,STDPISTON-ENGINE,STD
-
1300213002-1060 PIN-PISTONPIN-PISTON
-
1300813008-1215 RING-SET-PISTON,STDRING-SET-PISTON,STD
-
1302513025-0005 RING-SET-PISTON L,O/S 0.50RING-SET-PISTON L,O/S 0.50
-
1302913029-0007 PISTON-ENGINE L,O/S 0.50PISTON-ENGINE L,O/S 0.50
-
9202292022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9203392033-1207 RING-SNAPRING-SNAP
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
