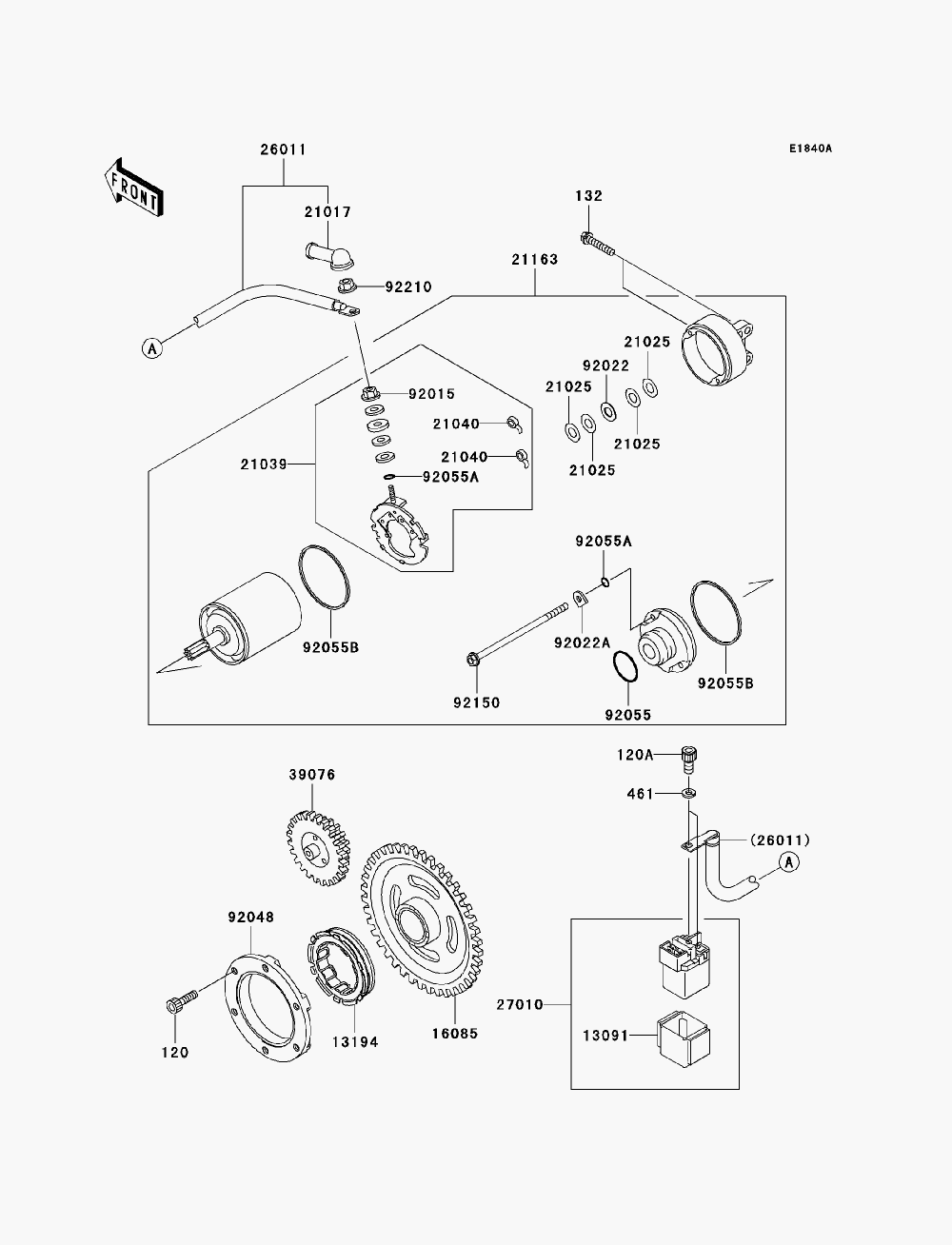

STARTER MOTOR для Kawasaki KFX700 (KSV700B8F) - 2008 года выпуска`
-
№АртикулНазвание
-
120120CA0816 BOLT-SOCKET,8X16BOLT-SOCKET,8X16
-
120A120CB0510 BOLT-SOCKET,5X10BOLT-SOCKET,5X10
-
132132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
461461DB0500 WASHER-SPRING,5MM,BLACKWASHER-SPRING,5MM,BLACK
-
1309113091-1992 HOLDERHOLDER
-
1319413194-1094 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1608516085-1238 GEAR,STARTERGEAR,STARTER
-
2101721017-017 GROMMET,STARTER TERMINALGROMMET,STARTER TERMINAL
-
2102521025-011 WASHER,9.1X18X0.2WASHER,9.1X18X0.2
-
2103921039-1063 BRUSH,CARBONBRUSH,CARBON
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-1320 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-0112 WIRE-LEADWIRE-LEAD
-
2701027010-1376 SWITCH,MAGNETICSWITCH,MAGNETIC
-
3907639076-0005 LIMITER,STARTERLIMITER,STARTER
-
9201592015-1476 NUT,STARTER MOTORNUT,STARTER MOTOR
-
9202292022-1132 WASHER,9.1X18X0.8WASHER,9.1X18X0.8
-
92022A92022-1458 WASHER,LOCK,T=2.0WASHER,LOCK,T=2.0
-
9204892048-0002 RACE,ONE WAY CLUTCHRACE,ONE WAY CLUTCH
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O,4.5X2.0RING-O,4.5X2.0
-
92055B92055-1381 RING-O,STARTER MOTORRING-O,STARTER MOTOR
-
9215092150-1243 BOLTBOLT
-
9221092210-0188 NUT,6MMNUT,6MM
