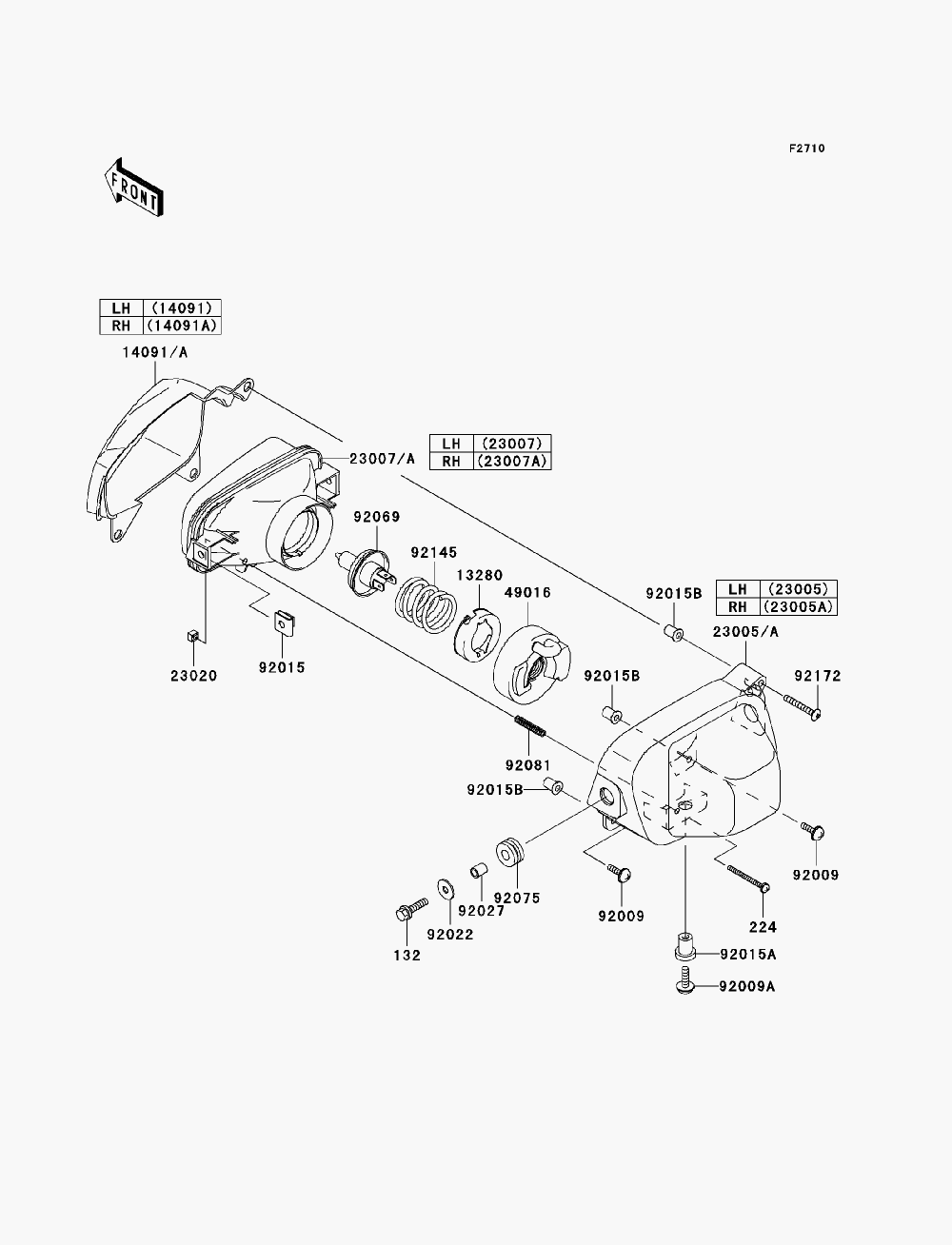

HEADLIGHT(S) для Kawasaki KFX700 (KSV700B8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0625 BOLT-FLANGED-SMALL,6X25
    BOLT-FLANGED-SMALL,6X25
  • 224
    224AA0445 SCREW-PAN-WP-CROS,4X45
    SCREW-PAN-WP-CROS,4X45
  • 13280
    13280-1198 HOLDER,BULB SETTING
    HOLDER,BULB SETTING
  • 14091
    14091-0061-6Z COVER,HEAD LAMP GRILL, LEFT HAND,BLACK
    COVER,HEAD LAMP GRILL, LEFT HAND,BLACK
  • 14091A
    14091-0062-6Z COVER,HEAD LAMP GRILL, RIGHT HAND,BLACK
    COVER,HEAD LAMP GRILL, RIGHT HAND,BLACK
  • 23005
    23005-1180 BODY-COMP-HEAD LAMP, LEFT HAND
    BODY-COMP-HEAD LAMP, LEFT HAND
  • 23005A
    23005-1181 BODY-COMP-HEAD LAMP, RIGHT HAND
    BODY-COMP-HEAD LAMP, RIGHT HAND
  • 23007
    23007-1389 LENS-COMP,HEAD LAMP, LEFT HAND
    LENS-COMP,HEAD LAMP, LEFT HAND
  • 23007A
    23007-1390 LENS-COMP,HEAD LAMP, RIGHT HAND
    LENS-COMP,HEAD LAMP, RIGHT HAND
  • 23020
    23020-018 NUT,4MM,FOCUS ADJUST
    NUT,4MM,FOCUS ADJUST
  • 49016
    49016-1213 COVER-SEAL,HEAD LAMP
    COVER-SEAL,HEAD LAMP
  • 92009
    92009-1654 SCREW,5X16,BLACK
    SCREW,5X16,BLACK
  • 92009A
    92009-1664 SCREW,6X22
    SCREW,6X22
  • 92015
    92015-1094 NUT,6MM
    NUT,6MM
  • 92015A
    92015-1692 NUT,RUBBER,6MM
    NUT,RUBBER,6MM
  • 92015B
    92015-1757 NUT,WELL,5MM
    NUT,WELL,5MM
  • 92022
    92022-125 WASHER,6.5X20X1.6
    WASHER,6.5X20X1.6
  • 92027
    92027-162 COLLAR,6.8X10X12
    COLLAR,6.8X10X12
  • 92069
    92069-1114 BULB,12V 45/45W,T15
    BULB,12V 45/45W,T15
  • 92075
    92075-1690 DAMPER
    DAMPER
  • 92081
    92081-1896 SPRING,FOCUS ADJUST
    SPRING,FOCUS ADJUST
  • 92145
    92145-1346 SPRING,BULB SETTING
    SPRING,BULB SETTING
  • 92172
    92172-0063 SCREW,5X40
    SCREW,5X40
