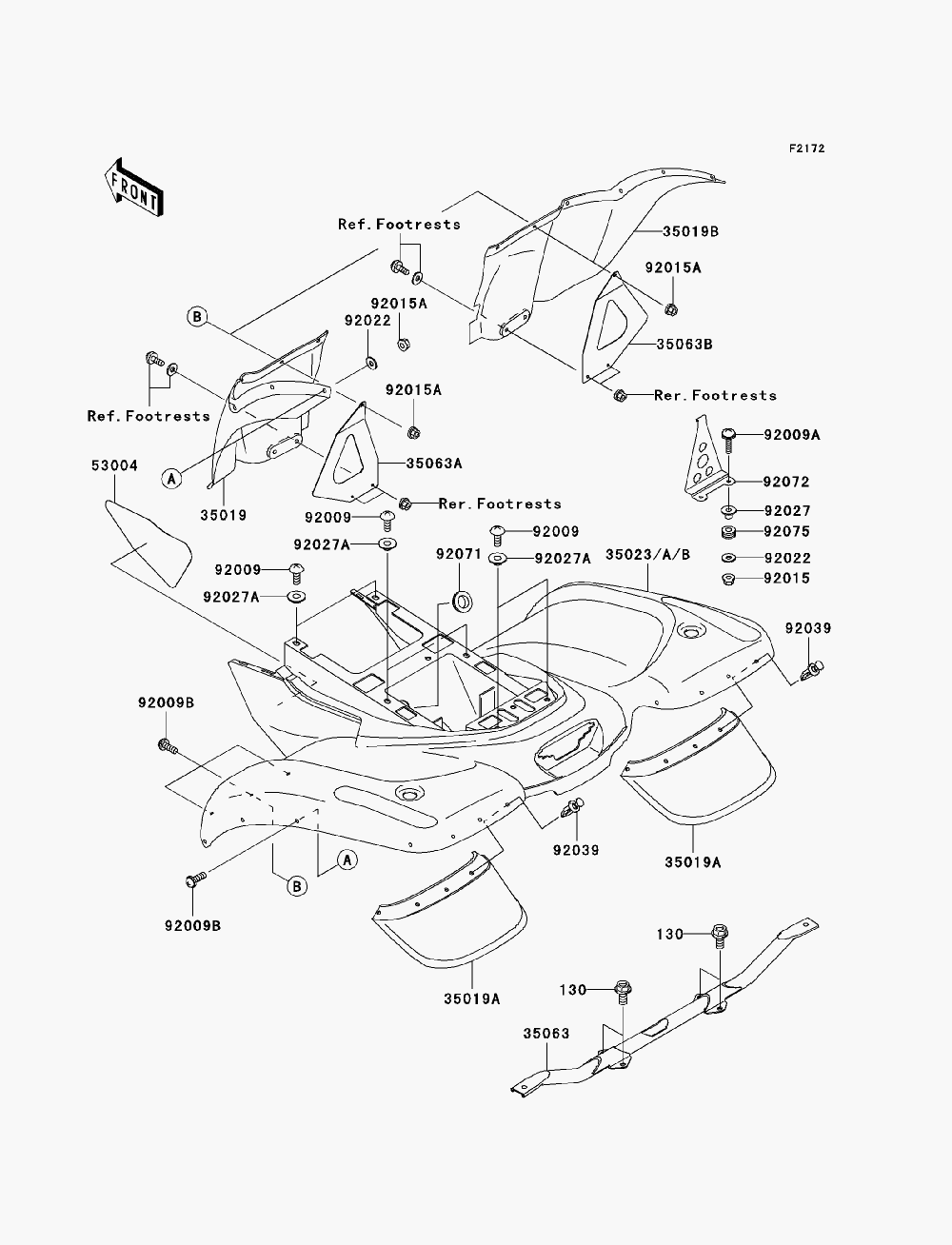

FENDER - REAR для Kawasaki Prairie 360 (KVF360B6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0816 BOLT-FLANGED,8X16
    BOLT-FLANGED,8X16
  • 35019
    35019-1334-6Z FLAP, REAR, FRONT, LEFT HAND,F.BLACK
    FLAP, REAR, FRONT, LEFT HAND,F.BLACK
  • 35019A
    35019-1336-6Z FLAP, REAR, REAR,F.BLACK
    FLAP, REAR, REAR,F.BLACK
  • 35019B
    35019-1375-6Z FLAP, REAR, FRONT, RIGHT HAND,F.BLACK
    FLAP, REAR, FRONT, RIGHT HAND,F.BLACK
  • 35023
    35023-1579-260 FENDER-REAR,A.RED (FOR 260)
    FENDER-REAR,A.RED (FOR 260)
  • 35023A
    35023-1579-286 FENDER-REAR,W.GREEN (FOR 286)
    FENDER-REAR,W.GREEN (FOR 286)
  • 35063
    35063-7505 STAY, REAR FENDER
    STAY, REAR FENDER
  • 35063A
    35063-7508 STAY, REAR FENDER, LEFT HAND
    STAY, REAR FENDER, LEFT HAND
  • 35063B
    35063-7509 STAY, REAR FENDER, RIGHT HAND
    STAY, REAR FENDER, RIGHT HAND
  • 53004
    53004-1173 MAT, REAR FENDER
    MAT, REAR FENDER
  • 92009
    92009-1166 SCREW,TAPPING,6X16
    SCREW,TAPPING,6X16
  • 92009A
    92009-1465 SCREW,6X25
    SCREW,6X25
  • 92009B
    92009-1621 SCREW,6X16
    SCREW,6X16
  • 92015
    92015-1233 NUT,FLANGED,6MM,BLACK
    NUT,FLANGED,6MM,BLACK
  • 92015A
    92015-1367 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
  • 92022
    92022-1093 WASHER,6.5X16X1.0
    WASHER,6.5X16X1.0
  • 92027
    92027-1651 COLLAR,FLANGED,L=12.1,BLACK
    COLLAR,FLANGED,L=12.1,BLACK
  • 92027A
    92027-1964 COLLAR,L=4.7
    COLLAR,L=4.7
  • 92039
    92039-1229 RIVET
    RIVET
  • 92071
    92071-1237 GROMMET
    GROMMET
  • 92072
    92072-1361 BAND
    BAND
  • 92075
    92075-222 DAMPER,CASE
    DAMPER,CASE
