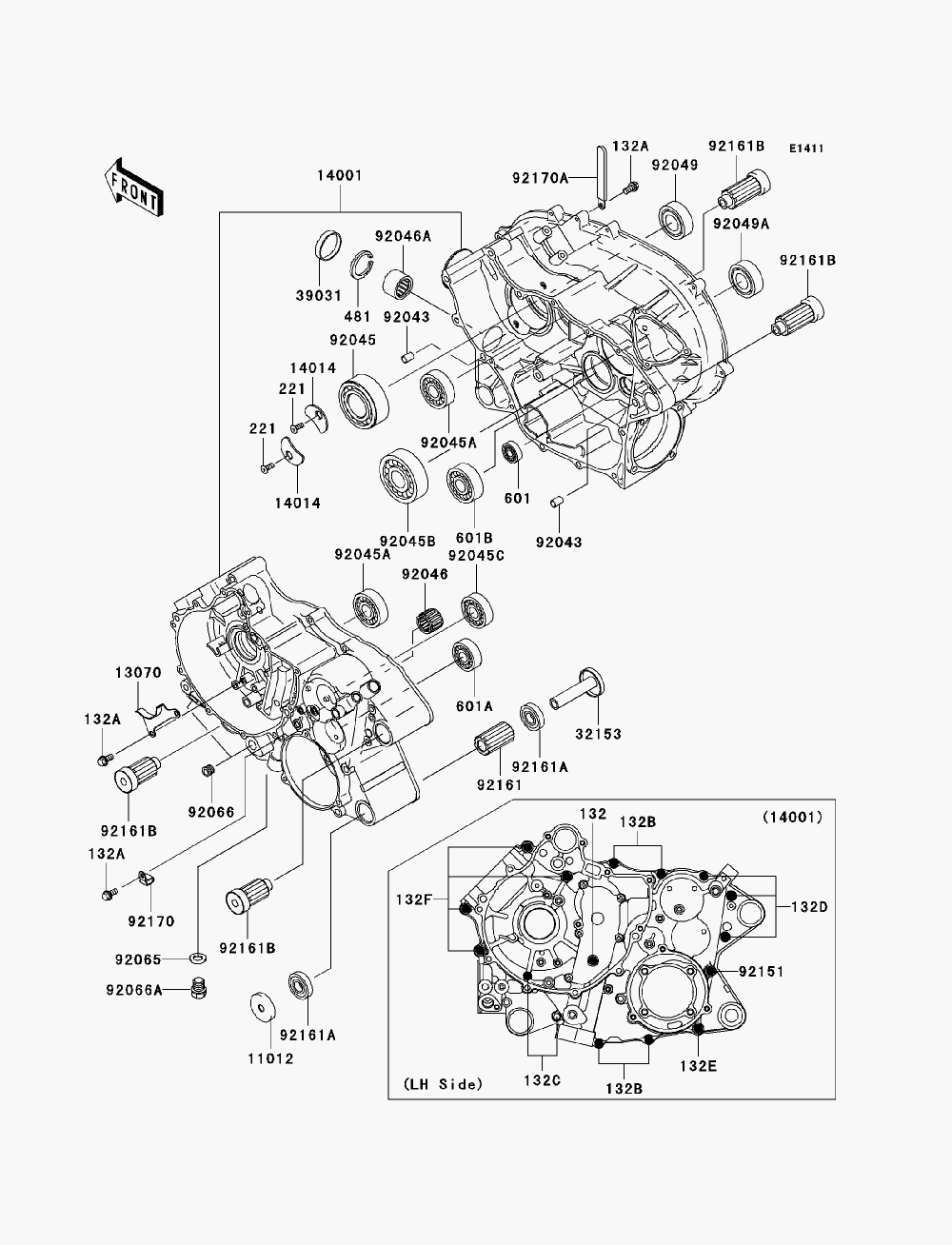

CRANKCASE для Kawasaki Prairie 360 (KVF360B6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132J0885 BOLT-FLANGED-SMALL,8X85BOLT-FLANGED-SMALL,8X85
-
132A132Y0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132B132Y0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
132C132Y0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
132D132Y0685 BOLT-FLANGED-SMALL,6X85BOLT-FLANGED-SMALL,6X85
-
132E132Y08110 BOLT-FLANGED-SMALL,8X110BOLT-FLANGED-SMALL,8X110
-
132F132Y0875 BOLT-FLANGED-SMALL,8X75BOLT-FLANGED-SMALL,8X75
-
221221B0616 SCREW-CSK-CROS,6X16SCREW-CSK-CROS,6X16
-
481481J3700 CIRCLIP-TYPE-C,37MMCIRCLIP-TYPE-C,37MM
-
601601A6000 BEARING-BALLBEARING-BALL
-
601A601A6004 BEARING-BALL,#6004BEARING-BALL,#6004
-
601B601A6304 BEARING-BALL,#6304BEARING-BALL,#6304
-
1101211012-1228 CAP,ENGINE BRACKETCAP,ENGINE BRACKET
-
1307013070-1255 GUIDE,CHAINGUIDE,CHAIN
-
1400114001-0031 SET-CRANKCASESET-CRANKCASE
-
1401414014-0016 PLATE-POSITIONPLATE-POSITION
-
3215332153-1873 PIPEPIPE
-
3903139031-1070 CAP-ENDCAP-END
-
9204392043-1506 PIN,10X14PIN,10X14
-
9204592045-0027 BEARING-BALL,5207-X1ECG45BEARING-BALL,5207-X1ECG45
-
92045A92045-1142 BEARING-BALL,TMB304CCMBEARING-BALL,TMB304CCM
-
92045B92045-1190 BEARING-BALL,6306SH2BEARING-BALL,6306SH2
-
92045C92045-1389 BEARING-BALL,6303LUABEARING-BALL,6303LUA
-
9204692046-1143 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1277 BEARING-NEEDLE,FJ-2820WABEARING-NEEDLE,FJ-2820WA
-
9204992049-1452 SEAL-OIL,TC 35X50X8SEAL-OIL,TC 35X50X8
-
92049A92049-1575 SEAL-OIL,HTC 30X45X8SEAL-OIL,HTC 30X45X8
-
9206592065-097 GASKET,12X22X2GASKET,12X22X2
-
9206692066-0003 PLUG,PT3/8X10PLUG,PT3/8X10
-
92066A92066-1174 PLUG,OIL DRAIN,12X15PLUG,OIL DRAIN,12X15
-
9215192151-1689 BOLT,8X110BOLT,8X110
-
9216192161-1257 DAMPER,BACK UNDER,PIPEDAMPER,BACK UNDER,PIPE
-
92161A92161-1258 DAMPER,BACK UNDERDAMPER,BACK UNDER
-
92161B92161-1259 DAMPER,L=63.5DAMPER,L=63.5
-
9217092170-1577 CLAMPCLAMP
-
92170A92170-1925 CLAMPCLAMP
