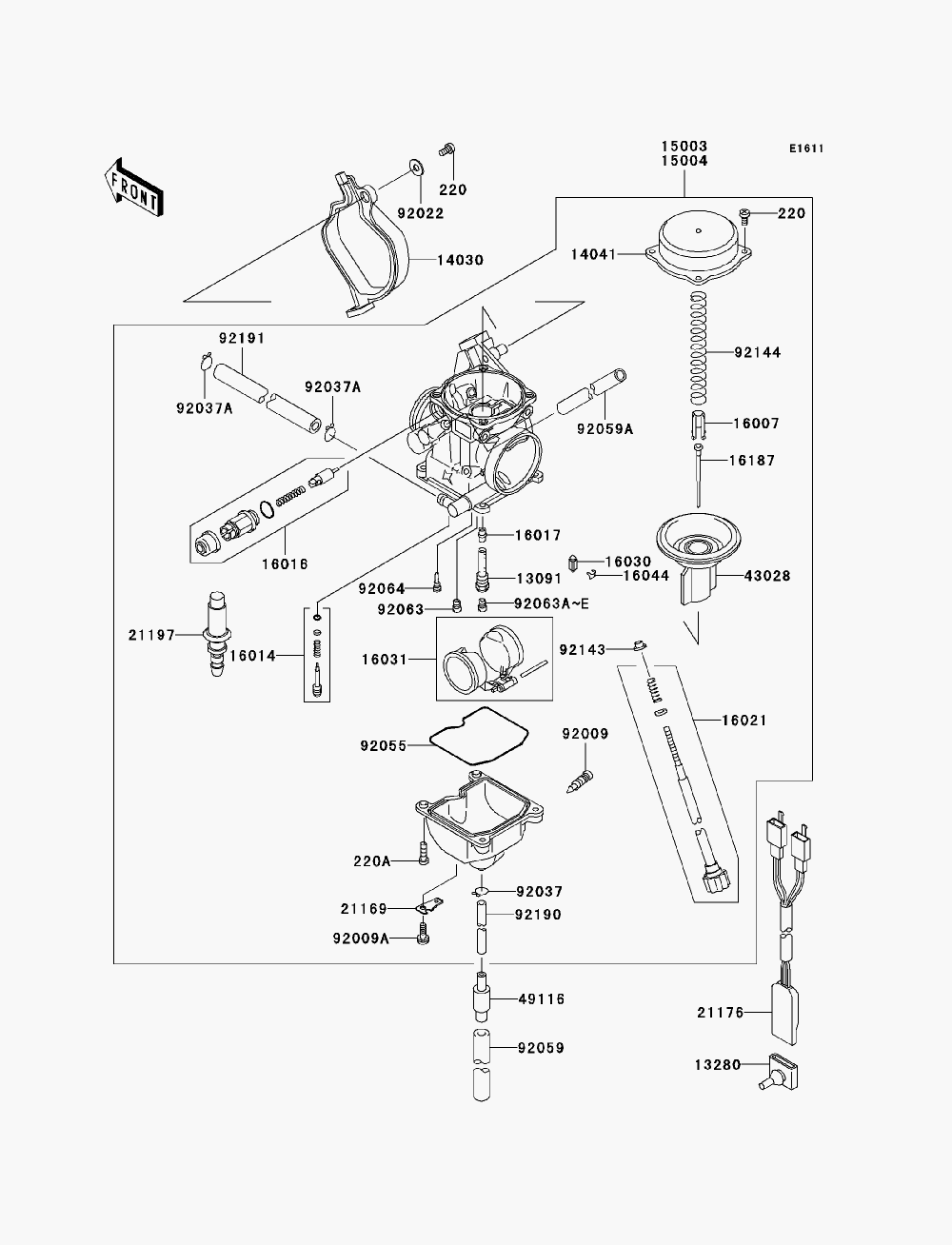

CARBURETOR для Kawasaki Prairie 360 (KVF360B6F) - 2006 года выпуска
-
№АртикулНазвание
-
1309113091-1914 HOLDER,NEEDLE JETHOLDER,NEEDLE JET
-
1328013280-1253 HOLDER,CARBURETORHOLDER,CARBURETOR
-
1403014030-1054 COVER-CARBURETORCOVER-CARBURETOR
-
1404114041-1061 COVER-COMP,MIXING,INSIDECOVER-COMP,MIXING,INSIDE
-
1500315003-0093 CARBURETOR-ASSY,CVK34CARBURETOR-ASSY,CVK34
-
1600716007-1134 SEAT-SPRING,VALVESEAT-SPRING,VALVE
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1101 PLUNGER,STARTERPLUNGER,STARTER
-
1601716017-1254 JET-NEEDLE,#6JET-NEEDLE,#6
-
1602116021-1242 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP,FLOAT VALVECLAMP,FLOAT VALVE
-
1618716187-1236 NEEDLE-JET,N2LQNEEDLE-JET,N2LQ
-
2116921169-1072 TERMINALTERMINAL
-
2117621176-1111 SENSOR,CARBURETORSENSOR,CARBURETOR
-
2119721197-1006 HEATERHEATER
-
4302843028-1081 DIAPHRAGM,VALVEDIAPHRAGM,VALVE
-
4911649116-1126 VALVE-ASSYVALVE-ASSY
-
9200992009-1551 SCREW,DRAIN,6X0.75SCREW,DRAIN,6X0.75
-
92009A92009-1713 SCREWSCREW
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203792037-1201 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1531 CLAMP,TUBECLAMP,TUBE
-
9205592055-1222 RING-O,FLOAT CHAMBERRING-O,FLOAT CHAMBER
-
9205992059-1736 TUBE,7X10X100TUBE,7X10X100
-
92059A92059-1861 TUBE,6.5X9.5X320TUBE,6.5X9.5X320
-
9206392063-1003 JET-MAIN,#90JET-MAIN,#90
-
92063A92063-1330 JET-MAIN,#150 (OPTION)JET-MAIN,#150 (OPTION)
-
92063B92063-1331 JET-MAIN,#152 (OPTION)JET-MAIN,#152 (OPTION)
-
92063C92063-1332 JET-MAIN,#155JET-MAIN,#155
-
92063D92063-1344 JET-MAIN,#158 (OPTION)JET-MAIN,#158 (OPTION)
-
92063E92063-1345 JET-MAIN,#160 (OPTION)JET-MAIN,#160 (OPTION)
-
9206492064-1101 JET-PILOT,#35JET-PILOT,#35
-
9214392143-1589 COLLARCOLLAR
-
220220B0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220D0414 SCREW-PAN-CROS,4X14SCREW-PAN-CROS,4X14
-
9214492144-1066 SPRING,VACUUM VALVESPRING,VACUUM VALVE
-
9219092190-1557 TUBE,4.5X8X330TUBE,4.5X8X330
-
9219192191-1144 TUBE,6.5X11.5X130TUBE,6.5X11.5X130
