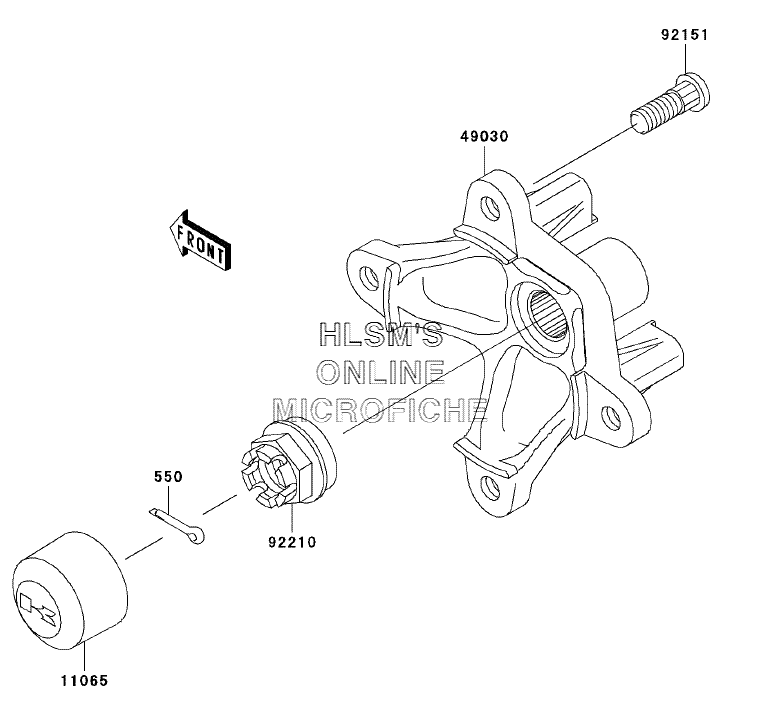

FRONT HUB для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска`
-
№АртикулНазвание
-
550550D4025 PIN COTTER, 4.0X25PIN COTTER, 4.0X25
-
1106511065-1153 CAP, WHEELCAP, WHEEL
-
4903049030-1135 HUB, FRONTHUB, FRONT
-
9215192151-1392 BOLT, 10X29.5BOLT, 10X29.5
-
9221092210-1349 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
