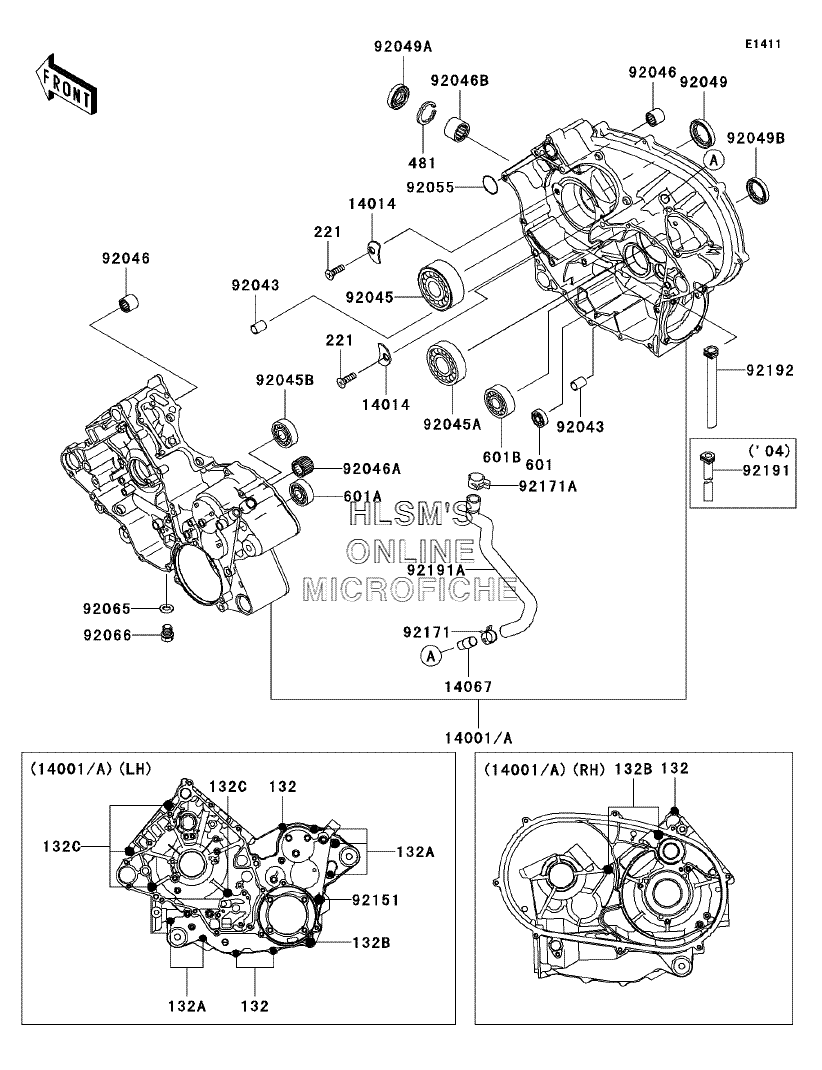

CRANKCASE для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0640 BOLT FLANGED SMALL, 6X40
    BOLT FLANGED SMALL, 6X40
  • 132A
    132Y0665 BOLT FLANGED SMALL, 6X65
    BOLT FLANGED SMALL, 6X65
  • 132B
    132Y08110 BOLT FLANGED SMALL, 8X110
    BOLT FLANGED SMALL, 8X110
  • 132C
    132Y0875 BOLT FLANGED SMALL, 8X75
    BOLT FLANGED SMALL, 8X75
  • 221
    221B0616 SCREW CSK CROS, 6X16
    SCREW CSK CROS, 6X16
  • 481
    481J3700 CIRCLIP TYPE C, 37MM
    CIRCLIP TYPE C, 37MM
  • 601
    601A6000 BEARING BALL
    BEARING BALL
  • 601A
    601A6004 BEARING BALL, #6004
    BEARING BALL, #6004
  • 601B
    601A6304 BEARING BALL, #6304
    BEARING BALL, #6304
  • 14001
    14001-0028 SET CRANKCASE
    SET CRANKCASE
  • 14014
    14014-0006 PLATE POSITION
    PLATE POSITION
  • 14067
    14067-006 FITTING, BREATHER
    FITTING, BREATHER
  • 92043
    92043-1506 PIN
    PIN
  • 92045
    92045-0012 BEARING BALL, 5208X2 A ECG45
    BEARING BALL, 5208X2 A ECG45
  • 92045A
    92045-1190 BEARING BALL, 6306SH2
    BEARING BALL, 6306SH2
  • 92045B
    92045-1389 BEARING BALL, 6303LUA
    BEARING BALL, 6303LUA
  • 92046
    92046-1118 BEARING NEEDLE, TA202715ZE
    BEARING NEEDLE, TA202715ZE
  • 92046A
    92046-1143 BEARING NEEDLE
    BEARING NEEDLE
  • 92046B
    92046-1277 BEARING NEEDLE, FJ 2820WA
    BEARING NEEDLE, FJ 2820WA
  • 92049
    92049-1452 SEAL OIL, TC 35X50X8
    SEAL OIL, TC 35X50X8
  • 92049A
    92049-1570 SEAL OIL, TCY 28X42X8
    SEAL OIL, TCY 28X42X8
  • 92049B
    92049-1575 SEAL OIL, HTC 30X45X8
    SEAL OIL, HTC 30X45X8
  • 92055
    92055-1136 RING O, 25.7X2.4
    RING O, 25.7X2.4
  • 92065
    92065-097 GASKET, 12X22X2
    GASKET, 12X22X2
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
  • 92151
    92151-1689 BOLT, 8X110
    BOLT, 8X110
  • 92171
    92171-0329 CLAMP
    CLAMP
  • 92171A
    92171-0514 CLAMP
    CLAMP
  • 92191A
    92191-1740 TUBE, BREATHER
    TUBE, BREATHER
  • 92192
    92192-0057 TUBE, OIL RETURN
    TUBE, OIL RETURN
