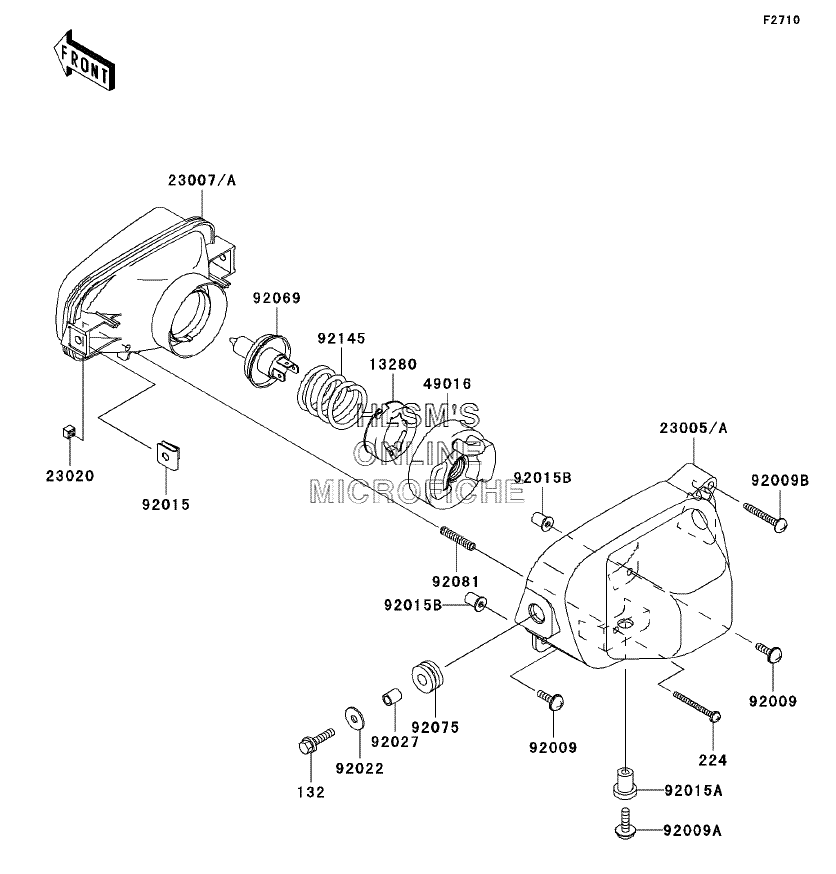

HEADLIGHT(S) для Kawasaki Prairie 700 4x4 (Red / Green) (KVF700-A2) - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132H0625 BOLT FLANGED SMALL, 6X25
    BOLT FLANGED SMALL, 6X25
  • 224
    224D0445 SCREW PAN WP CROS, 4X45
    SCREW PAN WP CROS, 4X45
  • 13280
    13280-1198 HOLDER, BULB SETTING
    HOLDER, BULB SETTING
  • 23005
    23005-1180 BODY COMP HEAD LAMP (LEFT)
    BODY COMP HEAD LAMP (LEFT)
  • 23005A
    23005-1181 BODY COMP HEAD LAMP (RIGHT)
    BODY COMP HEAD LAMP (RIGHT)
  • 23007
    23007-1389 LENS COMP, HEAD LAMP (LEFT)
    LENS COMP, HEAD LAMP (LEFT)
  • 23007A
    23007-1390 LENS COMP, HEAD LAMP (RIGHT)
    LENS COMP, HEAD LAMP (RIGHT)
  • 23020
    23020-018 NUT, 4MM, FOCUS ADJUST
    NUT, 4MM, FOCUS ADJUST
  • 49016
    49016-1213 COVER SEAL, HEAD LAMP
    COVER SEAL, HEAD LAMP
  • 92009
    92009-1654 SCREW, 5X16, BLACK
    SCREW, 5X16, BLACK
  • 92009A
    92009-1664 SCREW, 6X22
    SCREW, 6X22
  • 92009B
    92009-1928 SCREW, TAPPING, 5X40
    SCREW, TAPPING, 5X40
  • 92015
    92015-1094 NUT, 6MM
    NUT, 6MM
  • 92015A
    92015-1692 NUT, RUBBER, 6MM
    NUT, RUBBER, 6MM
  • 92015B
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-125 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92027
    92027-162 COLLAR, 6.8X10X12
    COLLAR, 6.8X10X12
  • 92069
    92069-1114 BULB, 12V 45/45W, T15
    BULB, 12V 45/45W, T15
  • 92075
    92075-1690 DAMPER
    DAMPER
  • 92081
    92081-1896 SPRING, FOCUS ADJUST
    SPRING, FOCUS ADJUST
  • 92145
    92145-1346 SPRING, BULB SETTING
    SPRING, BULB SETTING
