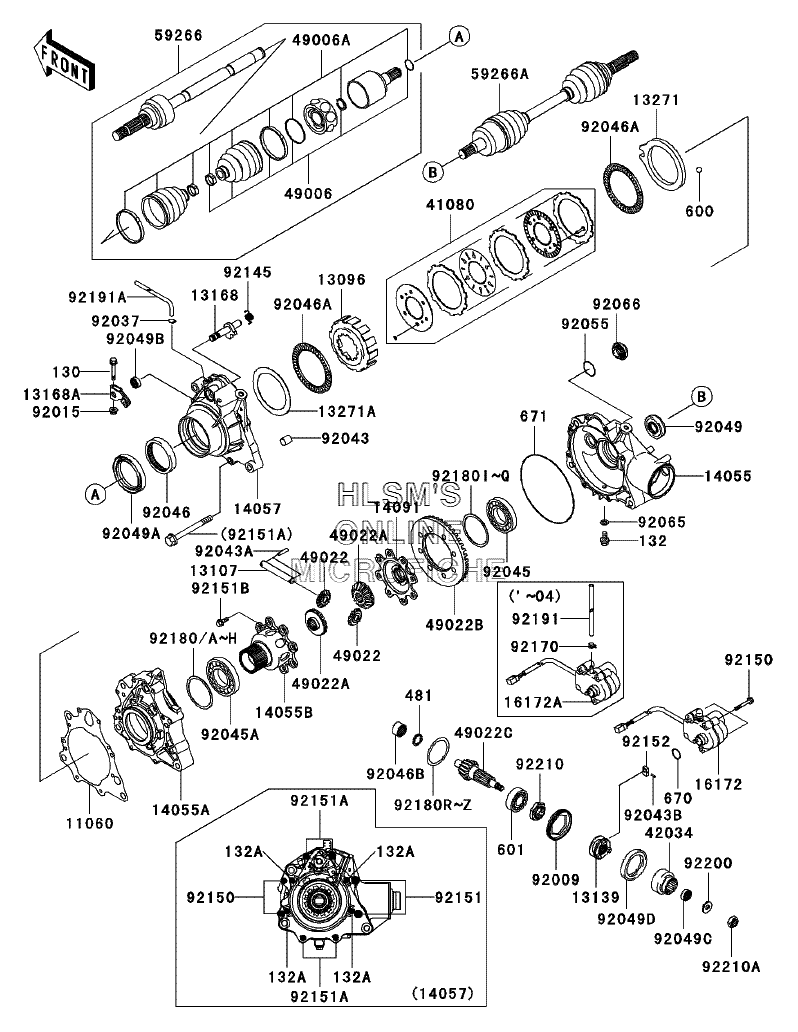

DRIVE SHAFT-FRONT (JKBVFHA1 4B531604 AND ABOVE) для Kawasaki Prairie 360 4x4 (KVF360-A2) - 2004 года выпуска`
-
№АртикулНазвание
-
1106011060-1982 GASKET, DIFF CASEGASKET, DIFF CASE
-
1309613096-1163 HOUSING-CLUTCH, DISCHOUSING-CLUTCH, DISC
-
1310713107-1447 SHAFT, BEVELSHAFT, BEVEL
-
1313913139-1097 SHIFTER, DIFFERENTIALSHIFTER, DIFFERENTIAL
-
1316813168-1724 LEVER, DIFFLEVER, DIFF
-
13168A13168-1725 LEVER, DIFFERENTIALLEVER, DIFFERENTIAL
-
1327113271-1497 PLATE, CAMPLATE, CAM
-
13271A13271-1503 PLATE, DISCPLATE, DISC
-
1405514055-1149 CASE-GEAR, DIFFERENTIAL (RIGHT)CASE-GEAR, DIFFERENTIAL (RIGHT)
-
14055A14055-1155 CASE-GEAR, CENTERCASE-GEAR, CENTER
-
14055B14055-1156 CASE-GEAR, BEVEL (LEFT)CASE-GEAR, BEVEL (LEFT)
-
1405714057-1004 CASE-COMP-GEAR, DIFF (LEFT)CASE-COMP-GEAR, DIFF (LEFT)
-
1409114091-1197 COVER, BEVEL (RIGHT)COVER, BEVEL (RIGHT)
-
16172A16172-1057 ACTUATOR, DIFFERENTIALACTUATOR, DIFFERENTIAL
-
4108041080-1512 DISC ASSY, DIFFERENTIAL LOCKDISC ASSY, DIFFERENTIAL LOCK
-
4203442034-1192 COUPLING, BEVELCOUPLING, BEVEL
-
4900649006-1342 BOOT, BALL JOINT, INSIDEBOOT, BALL JOINT, INSIDE
-
49006A49006-1343 BOOT, BALL JOINT, OUTSIDEBOOT, BALL JOINT, OUTSIDE
-
4902249022-1177 GEAR-BEVEL (10 TEETH)GEAR-BEVEL (10 TEETH)
-
49022A49022-1178 GEAR-BEVEL (16 TEETH)GEAR-BEVEL (16 TEETH)
-
49022B49022-1190 GEAR-BEVEL (35 TEETH)GEAR-BEVEL (35 TEETH)
-
49022C49022-1201 GEAR-BEVEL (8 TEETH)GEAR-BEVEL (8 TEETH)
-
5926659266-1129 JOINT-BALL (LEFT)JOINT-BALL (LEFT)
-
59266A59266-1130 JOINT-BALL (RIGHT)JOINT-BALL (RIGHT)
-
9200992009-1914 SCREW, 64MMSCREW, 64MM
-
9201592015-1339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1575 PINPIN
-
92043B92043-1649 PIN, 2X9.8PIN, 2X9.8
-
9204592045-1393 BEARING-BALL, 60/32BEARING-BALL, 60/32
-
92045A92045-1394 BEARING-BALL, 6910BEARING-BALL, 6910
-
9204692046-1282 BEARING-NEEDLE, TA627412ZE02BEARING-NEEDLE, TA627412ZE02
-
92046A92046-1286 BEARING-NEEDLE, AK1116BEARING-NEEDLE, AK1116
-
92046B92046-1297 BEARING-NEEDLE, AJ501515WBEARING-NEEDLE, AJ501515W
-
9204992049-1534 SEAL-OIL, SDD7 22X48X7HSSEAL-OIL, SDD7 22X48X7HS
-
92049A92049-1536 SEAL-OIL, HTCY 62X81X10.5SEAL-OIL, HTCY 62X81X10.5
-
92049B92049-1550 SEAL-OIL, TC 12X22X7SEAL-OIL, TC 12X22X7
-
92049C92049-1572 SEAL-OIL, KB 13X19X13SEAL-OIL, KB 13X19X13
-
92049D92049-1573 SEAL-OIL, TCY 48X65X8SEAL-OIL, TCY 48X65X8
-
9205592055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
9206592065-023 GASKETGASKET
-
9206692066-1303 PLUGPLUG
-
9214592145-1344 SPRING, DIFF RETURNSPRING, DIFF RETURN
-
9215092150-1884 BOLT, 6X45BOLT, 6X45
-
9215192151-1794 BOLT, 8X50BOLT, 8X50
-
92151A92151-1795 BOLT, 6X60BOLT, 6X60
-
92151B92151-1910 BOLT, 10X19.5BOLT, 10X19.5
-
9215292152-1349 COLLARCOLLAR
-
9217092170-2042 CLAMPCLAMP
-
9218092180-1390 SHIM, 62X71X0.15SHIM, 62X71X0.15
-
92180A92180-1391 SHIM, 62X71X0.20SHIM, 62X71X0.20
-
92180B92180-1392 SHIM, 62X71X0.50SHIM, 62X71X0.50
-
92180C92180-1393 SHIM, 62X71X0.70SHIM, 62X71X0.70
-
92180D92180-1394 SHIM, 62X71X0.80SHIM, 62X71X0.80
-
92180E92180-1395 SHIM, 62X71X0.90SHIM, 62X71X0.90
-
92180F92180-1396 SHIM, 62X71X1.00SHIM, 62X71X1.00
-
92180G92180-1397 SHIM, 62X71X1.10SHIM, 62X71X1.10
-
92180H92180-1398 SHIM, 62X71X1.20SHIM, 62X71X1.20
-
92180I92180-1399 SHIM, 32X42X0.15SHIM, 32X42X0.15
-
92180J92180-1400 SHIM, 32X42X0.20SHIM, 32X42X0.20
-
92180K92180-1401 SHIM, 32X42X0.50SHIM, 32X42X0.50
-
92180L92180-1402 SHIM, 32X42X0.70SHIM, 32X42X0.70
-
92180M92180-1403 SHIM, 32X42X0.80SHIM, 32X42X0.80
-
92180N92180-1404 SHIM, 32X42X0.90SHIM, 32X42X0.90
-
92180O92180-1405 SHIM, 32X42X1.00SHIM, 32X42X1.00
-
92180P92180-1406 SHIM, 32X42X1.10SHIM, 32X42X1.10
-
92180Q92180-1407 SHIM, 32X42X1.20SHIM, 32X42X1.20
-
92180R92180-1408 SHIM, 50X61X0.15SHIM, 50X61X0.15
-
92180S92180-1409 SHIM, 50X61X0.20SHIM, 50X61X0.20
-
92180T92180-1410 SHIM, 50X61X0.50SHIM, 50X61X0.50
-
92180U92180-1411 SHIM, 50X61X0.70SHIM, 50X61X0.70
-
92180V92180-1412 SHIM, 50X61X0.80SHIM, 50X61X0.80
-
130130G0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
132132J0816 BOLT-FLANGED-SMALL, 8X16BOLT-FLANGED-SMALL, 8X16
-
132A132Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
481481J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
600600A1100 BALL-STEEL, 11/32"BALL-STEEL, 11/32"
-
601601A6305 BEARING-BALL, #6305BEARING-BALL, #6305
-
670670D3022 O RINGO RING
-
671671D25145 O RINGO RING
-
92180W92180-1413 SHIM, 50X61X0.90SHIM, 50X61X0.90
-
92180X92180-1414 SHIM, 50X61X1.00SHIM, 50X61X1.00
-
92180Y92180-1415 SHIM, 50X61X1.10SHIM, 50X61X1.10
-
92180Z92180-1416 SHIM, 50X61X1.20SHIM, 50X61X1.20
-
9219192191-1594 TUBE, 4.7X9.5X800TUBE, 4.7X9.5X800
-
92191A92191-1638 TUBE, BREATHERTUBE, BREATHER
-
9220092200-1635 WASHER, 10X24X2.5WASHER, 10X24X2.5
-
9221092210-1225 NUT, 25MMNUT, 25MM
-
92210A92210-1351 NUT, LOCK, 10MMNUT, LOCK, 10MM
