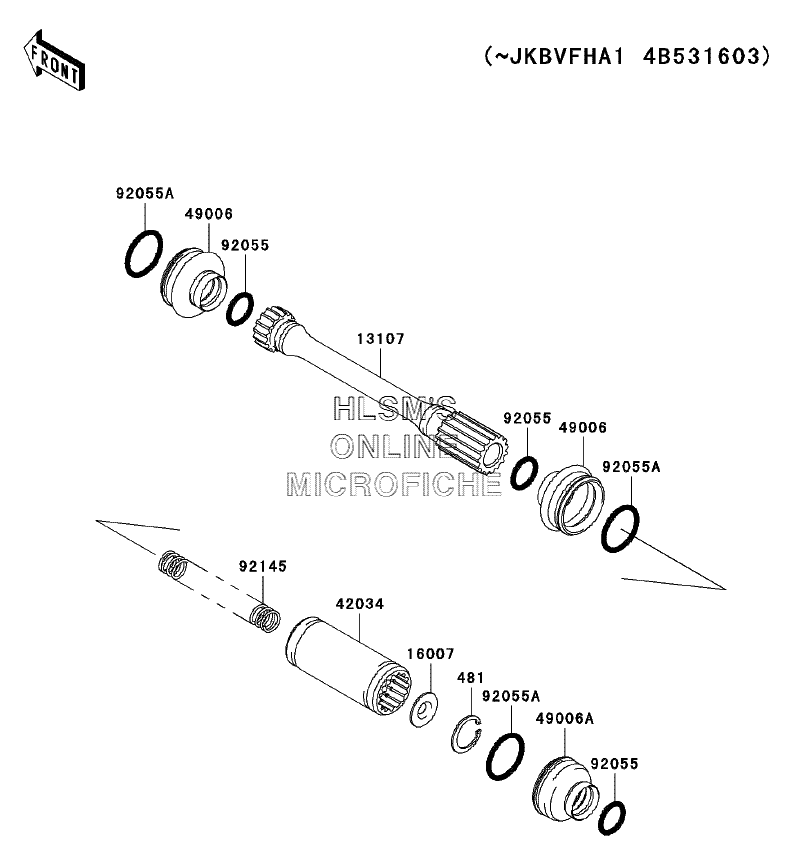

DRIVE SHAFT- PROPELLER (UP TO JKBVFHA1 4B531603) для Kawasaki Prairie 360 4x4 (KVF360-A2) - 2004 года выпуска`
-
№АртикулНазвание
-
481481J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
1310713107-1484 SHAFT, FRONT PROPELLER SHAFTSHAFT, FRONT PROPELLER SHAFT
-
1600716007-1205 SEAT-SPRING, PROPELLER SHAFTSEAT-SPRING, PROPELLER SHAFT
-
4203442034-1162 COUPLING, PROPELLER SHAFTCOUPLING, PROPELLER SHAFT
-
4900649006-1341 BOOTBOOT
-
49006A49006-1352 BOOT, ENGINE SIDEBOOT, ENGINE SIDE
-
9205592055-1633 RING-O, 18X24X3RING-O, 18X24X3
-
92055A92055-1634 RING-O, 28X34X3RING-O, 28X34X3
-
9214592145-1304 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
