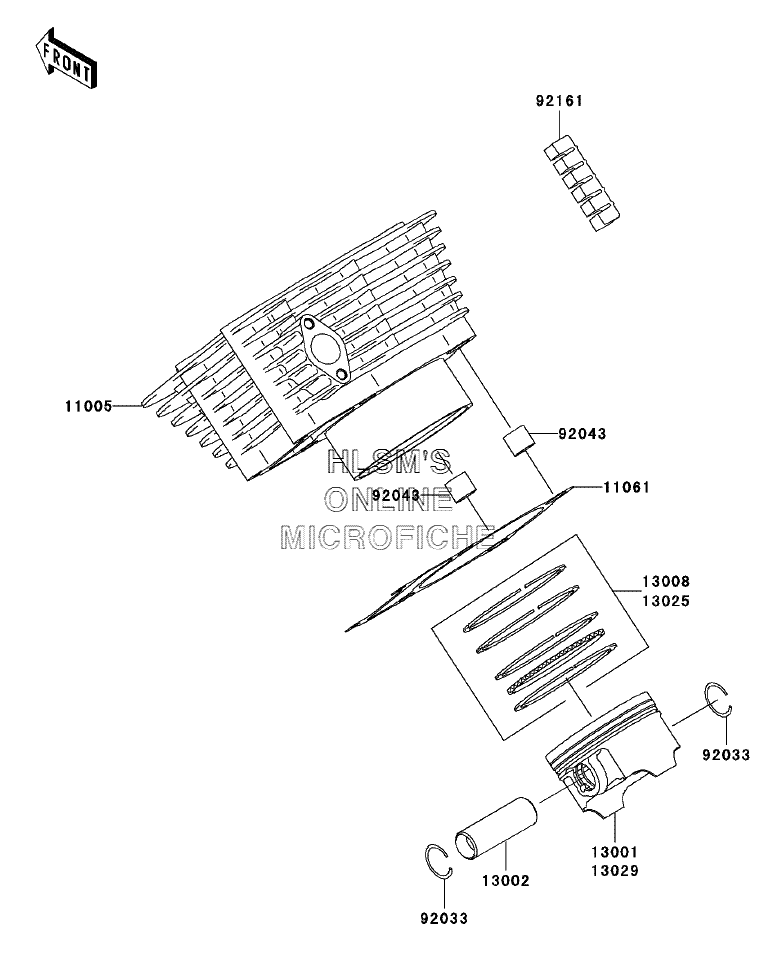

CYLINDER/PISTON(S) для Kawasaki Prairie 360 4x4 (KVF360-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1100511005-1980 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-1085 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1652 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1060 PIN-PISTONPIN-PISTON
-
1300813008-1214 RING-SET-PISTONRING-SET-PISTON
-
1302513025-0002 RING-SET-PISTON (O/S 0.50)RING-SET-PISTON (O/S 0.50)
-
1302913029-0002 PISTON-ENGINE (O/S 0.50)PISTON-ENGINE (O/S 0.50)
-
9203392033-1207 RING-SNAPRING-SNAP
-
9204392043-1608 PIN, 13X16X14PIN, 13X16X14
-
9216192161-1312 DAMPER, CYLINDERDAMPER, CYLINDER
