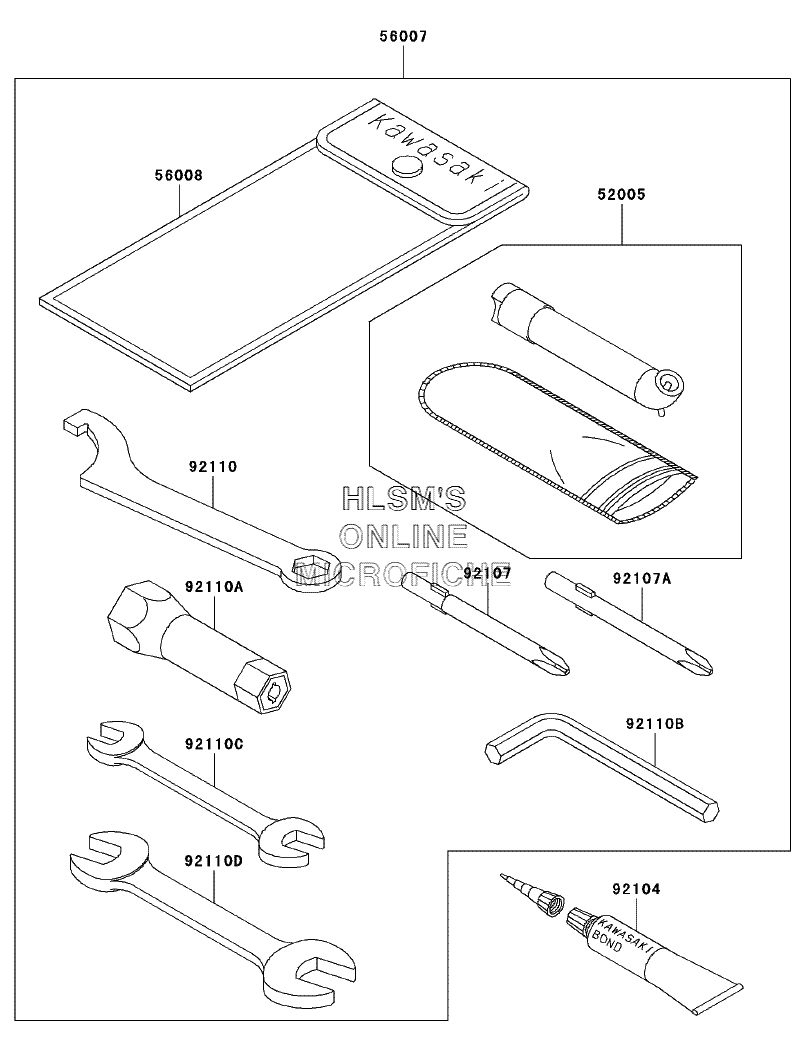

OWNER'S TOOLS для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска
-
№АртикулНазвание
-
5200552005-1082 GAUGE, AIRGAUGE, AIR
-
5600756007-1496 TOOL-KITTOOL-KIT
-
5600856008-1007 BAG, TOOLBAG, TOOL
-
9210492104-002 KAWABOND #5 100G (SILVER)KAWABOND #5 100G (SILVER)
-
9210792107-005 TOOL-DRIVER, #3 PHILLIPSTOOL-DRIVER, #3 PHILLIPS
-
92107A92107-1053 TOOL-DRIVER, #2 PHILLIPSTOOL-DRIVER, #2 PHILLIPS
-
9211092110-1040 TOOL-WRENCH, HOOK AND BOXEND 14MMTOOL-WRENCH, HOOK AND BOXEND 14MM
-
92110A92110-1109 TOOL-WRENCH, BOX, 18MMTOOL-WRENCH, BOX, 18MM
-
92110B92110-1140 TOOL-WRENCH, ALLEN, 3MMTOOL-WRENCH, ALLEN, 3MM
-
92110C92110-1152 TOOL-WRENCH, OPEN END 10X12TOOL-WRENCH, OPEN END 10X12
-
92110D92110-1153 TOOL-WRENCH, OPEN END 14X17TOOL-WRENCH, OPEN END 14X17
