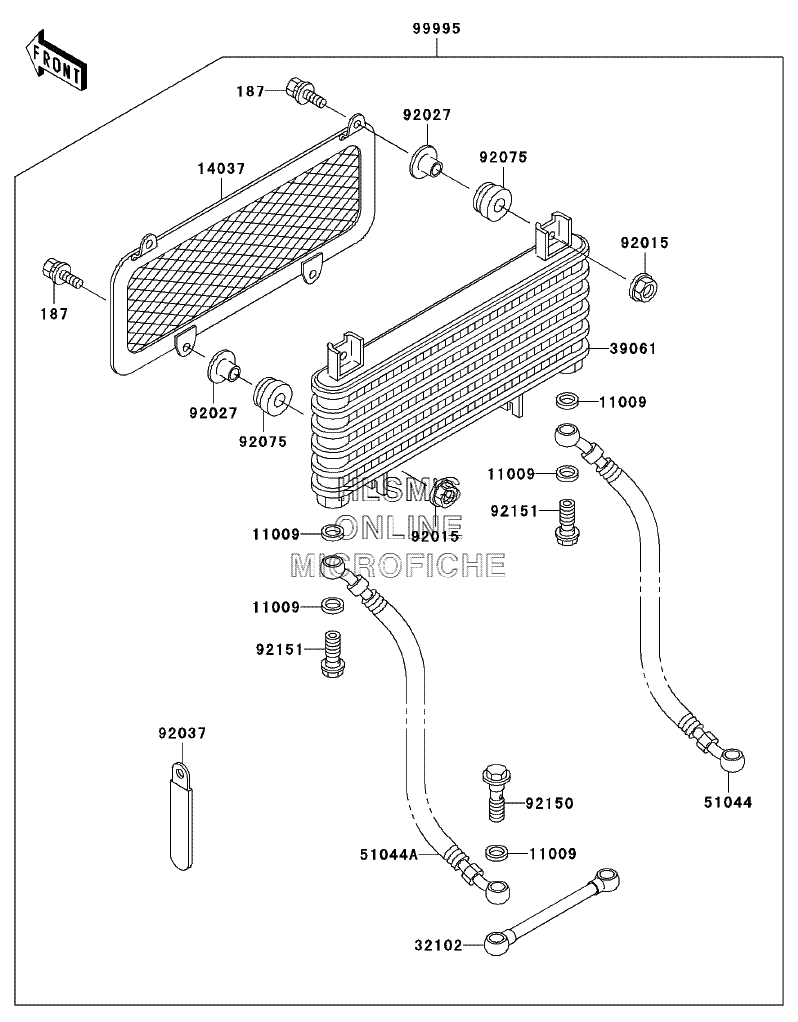

OPTIONAL PARTS (RADIATOR) для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска

  • №
    Артикул
    Название
  • 187
    187D0625 BOLT-UPSET-WSP (EXCEPT CALIF)
    BOLT-UPSET-WSP (EXCEPT CALIF)
  • 11009
    11009-1105 GASKET, 10X14.5X1.5 (EXCEPT CALIF)
    GASKET, 10X14.5X1.5 (EXCEPT CALIF)
  • 14037
    14037-1105 SCREEN (EXCEPT CALIF)
    SCREEN (EXCEPT CALIF)
  • 32102
    32102-1966 PIPE (EXCEPT CALIF)
    PIPE (EXCEPT CALIF)
  • 39061
    39061-1126 RADIATOR-ASSY (EXCEPT CALIF)
    RADIATOR-ASSY (EXCEPT CALIF)
  • 51044
    51044-1096 TUBE-ASSY (EXCEPT CALIF)
    TUBE-ASSY (EXCEPT CALIF)
  • 51044A
    51044-1097 TUBE-ASSY (EXCEPT CALIF)
    TUBE-ASSY (EXCEPT CALIF)
  • 92015
    92015-1367 NUT, FLANGED, 6MM (EXCEPT CALIF)
    NUT, FLANGED, 6MM (EXCEPT CALIF)
  • 92027
    92027-1767 COLLAR (EXCEPT CALIF)
    COLLAR (EXCEPT CALIF)
  • 92037
    92037-1679 CLAMP (EXCEPT CALIF)
    CLAMP (EXCEPT CALIF)
  • 92075
    92075-277 DAMPER (EXCEPT CALIF)
    DAMPER (EXCEPT CALIF)
  • 92150
    92150-1136 BOLT (EXCEPT CALIF)
    BOLT (EXCEPT CALIF)
  • 92151
    92151-1349 BOLT, BANJO, 10X23 (EXCEPT CALIF)
    BOLT, BANJO, 10X23 (EXCEPT CALIF)
  • 99995
    99995-1022 KIT., RADIATOR (EXCEPT CALIF)
    KIT., RADIATOR (EXCEPT CALIF)
