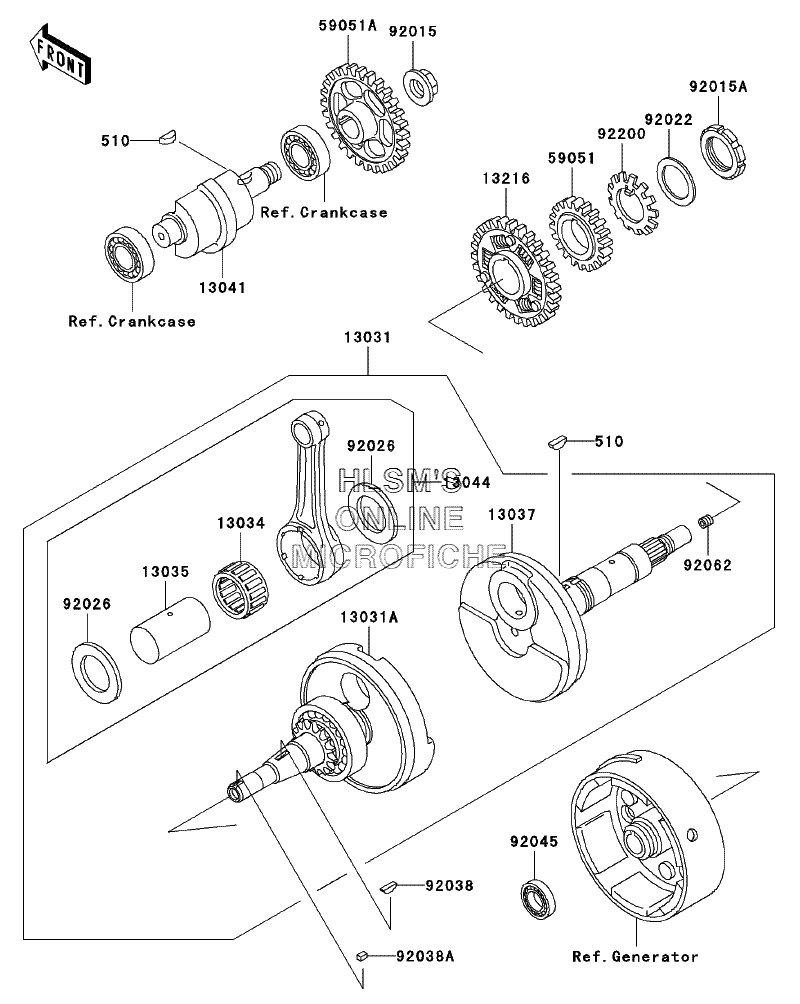

CRANKSHAFT для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска

  • №
    Артикул
    Название
  • 510
    510A5100 KEY-WOODRUFF
    KEY-WOODRUFF
  • 13031
    13031-1388 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13031A
    13031-1402 CRANKSHAFT-COMP (LEFT)
    CRANKSHAFT-COMP (LEFT)
  • 13034
    13034-1061 BEARING-BIG END, PK32X43X22.4
    BEARING-BIG END, PK32X43X22.4
  • 13035
    13035-1067 PIN-CRANK
    PIN-CRANK
  • 13037
    13037-1499 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13041
    13041-1066 BALANCER
    BALANCER
  • 13044
    13044-5066 SET-CONNECTING ROD
    SET-CONNECTING ROD
  • 13216
    13216-1072 GEAR-COMP, BALANCER
    GEAR-COMP, BALANCER
  • 59051
    59051-1140 GEAR-SPUR, OIL PUMP (36 TEETH)
    GEAR-SPUR, OIL PUMP (36 TEETH)
  • 59051A
    59051-1141 GEAR-SPUR, BALANCER (44 TEETH)
    GEAR-SPUR, BALANCER (44 TEETH)
  • 92015
    92015-1465 NUT, 16MM
    NUT, 16MM
  • 92015A
    92015-1511 NUT, PUMP GEAR, 30MM
    NUT, PUMP GEAR, 30MM
  • 92022
    92022-1987 WASHER, 30.3X38X0.5
    WASHER, 30.3X38X0.5
  • 92026
    92026-1232 SPACER, 32X51.5X1.2
    SPACER, 32X51.5X1.2
  • 92038
    92038-001 KEY, WOODRUFF
    KEY, WOODRUFF
  • 92038A
    92038-1051 KEY, SUNK
    KEY, SUNK
  • 92045
    92045-1266 BEARING-BALL, 6903C3
    BEARING-BALL, 6903C3
  • 92062
    92062-1056 NOZZLE
    NOZZLE
  • 92200
    92200-1203 WASHER, PUMP GEAR
    WASHER, PUMP GEAR
