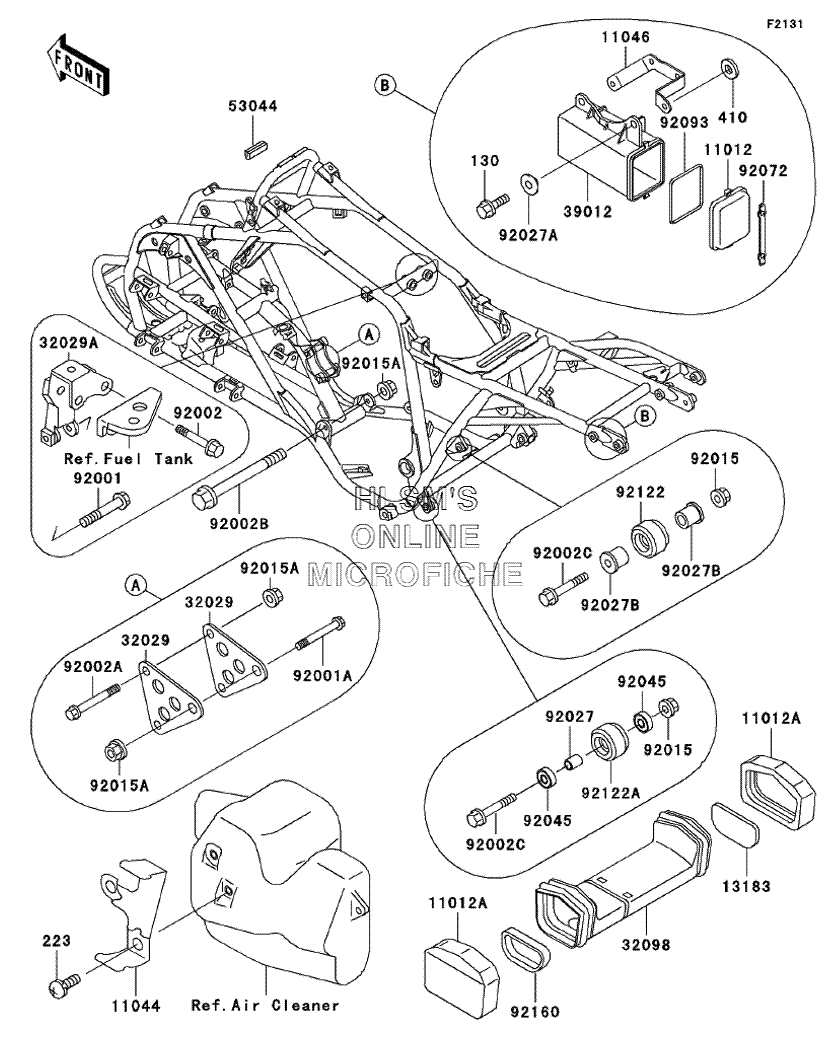

FRAME FITTINGS для Kawasaki Mojave 250 (KSF250-A17) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0820 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 223
    223C0610 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 410
    410B0800 WASHER, PLAIN, SMALL, 8MM
    WASHER, PLAIN, SMALL, 8MM
  • 11012
    11012-1606 CAP, TOOL CASE
    CAP, TOOL CASE
  • 11012A
    11012-1622 CAP, TOOL CASE
    CAP, TOOL CASE
  • 11044
    11044-1932 BRACKET, IGNITER
    BRACKET, IGNITER
  • 11046
    11046-1911 BRACKET, STORAGE CASE
    BRACKET, STORAGE CASE
  • 13183
    13183-1220 PLATE, TOOL CASE
    PLATE, TOOL CASE
  • 32029
    32029-1474 BRACKET, ENGINE (FRONT)
    BRACKET, ENGINE (FRONT)
  • 32029A
    32029-1475 BRACKET, ENGINE, TOP
    BRACKET, ENGINE, TOP
  • 32098
    32098-1090 CASE, TOOL
    CASE, TOOL
  • 39012
    39012-1055 CASE, STORAGE
    CASE, STORAGE
  • 53044
    53044-1185 TRIM, L=50
    TRIM, L=50
  • 92001
    92001-1579 BOLT, FLANGED, 8X45
    BOLT, FLANGED, 8X45
  • 92001A
    92001-4021 BOLT, 10X75
    BOLT, 10X75
  • 92002
    92002-1182 BOLT, 8X50
    BOLT, 8X50
  • 92002A
    92002-1764 BOLT, FLANGED, 10X80
    BOLT, FLANGED, 10X80
  • 92002B
    92002-1765 BOLT, FLANGED, 10X145
    BOLT, FLANGED, 10X145
  • 92002C
    92002-1857 BOLT, FLANGED, 8X52
    BOLT, FLANGED, 8X52
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1597 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92027
    92027-1081 COLLAR, 8.8X12X15.5
    COLLAR, 8.8X12X15.5
  • 92027A
    92027-1354 COLLAR
    COLLAR
  • 92027B
    92027-1383 COLLAR, CHAIN GUIDE
    COLLAR, CHAIN GUIDE
  • 92045
    92045-1227 BEARING, BALL, 608DMC3 AV2S
    BEARING, BALL, 608DMC3 AV2S
  • 92072
    92072-1226 BAND, TOOL CASE CAP
    BAND, TOOL CASE CAP
  • 92093
    92093-1247 SEAL, TOOL CASE CAP
    SEAL, TOOL CASE CAP
  • 92122
    92122-1021 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92122A
    92122-1102 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92160
    92160-1010 DAMPER, TOOL CASE
    DAMPER, TOOL CASE
