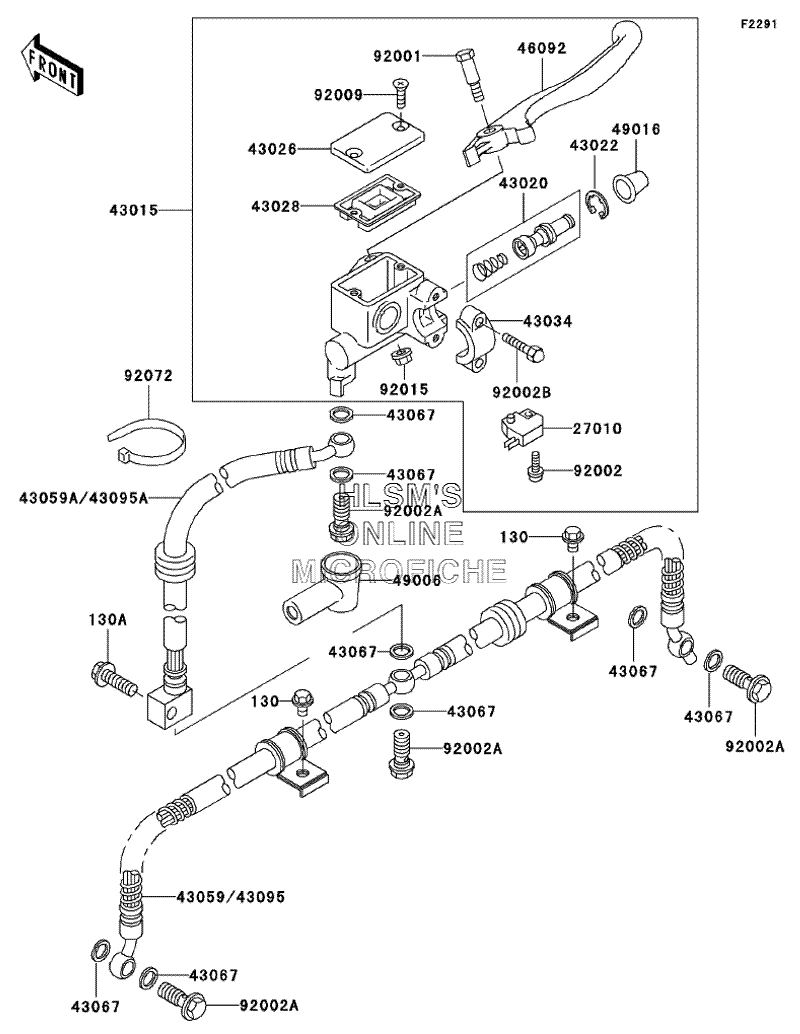

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Mojave 250 (KSF250-A17) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130B0825 BOLT-FLANGED, 8X25
    BOLT-FLANGED, 8X25
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1646 CYLINDER, ASSY, MASTER (FRONT)
    CYLINDER, ASSY, MASTER (FRONT)
  • 43020
    43020-1056 PISTON, COMP, BRAKE (FRONT)
    PISTON, COMP, BRAKE (FRONT)
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1074 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43067
    43067-001 WASHER
    WASHER
  • 43095
    43095-1248 HOSE, BRAKE (FRONT)
    HOSE, BRAKE (FRONT)
  • 43095A
    43095-1249 HOSE, BRAKE (FRONT)
    HOSE, BRAKE (FRONT)
  • 46092
    46092-1208 LEVER, GRIP, FRONT BRAKE
    LEVER, GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92001
    92001-1728 BOLT, FRONT BRAKE LEVER
    BOLT, FRONT BRAKE LEVER
  • 92002
    92002-1323 BOLT, SCREW (4X12)
    BOLT, SCREW (4X12)
  • 92002A
    92002-1888 BOLT, OIL (L=23)
    BOLT, OIL (L=23)
  • 92002B
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW (4MM)
    SCREW (4MM)
  • 92015
    92015-1233 NUT, FLANGED (6MM) (BLACK)
    NUT, FLANGED (6MM) (BLACK)
  • 92072
    92072-031 BAND (L=149)
    BAND (L=149)
