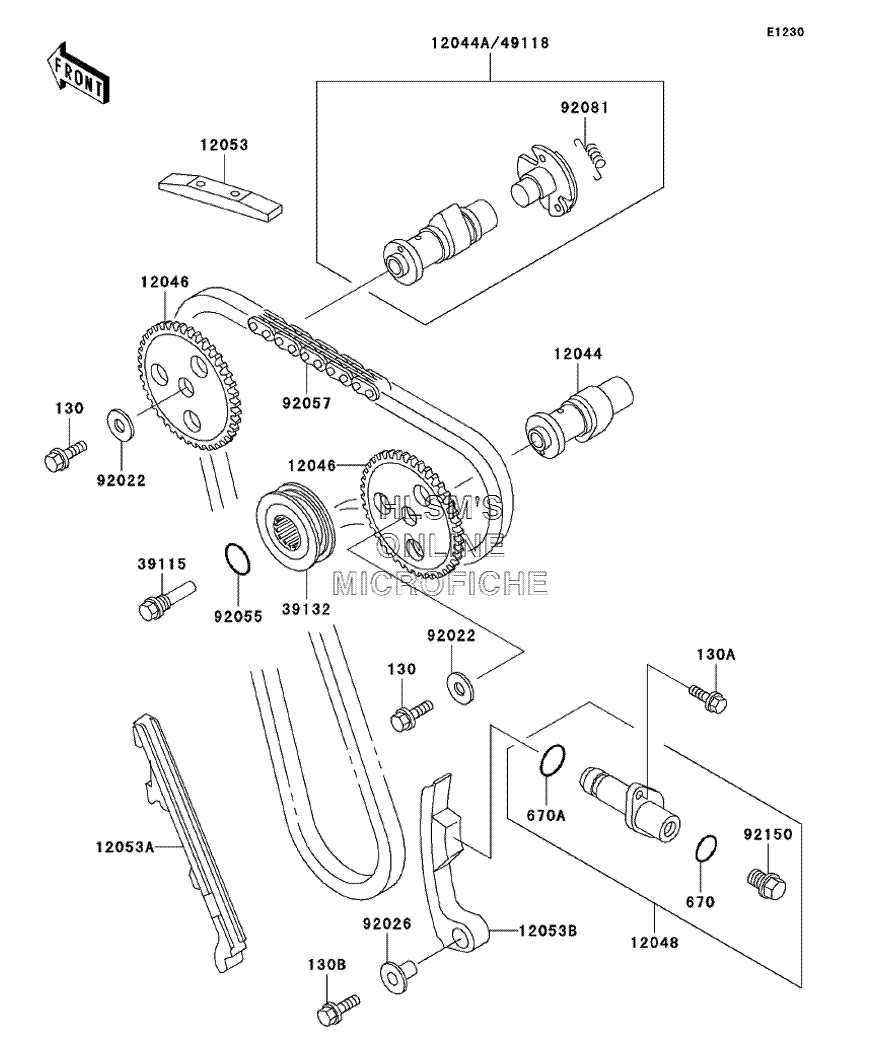

CAMSHAFT(S)/TENSIONER для Kawasaki Mojave 250 (KSF250-A17) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130G1025 BOLT, FLANGED, 10X25
    BOLT, FLANGED, 10X25
  • 130A
    130J0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 130B
    130P0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 670
    670D2010 O-RING
    O-RING
  • 670A
    670D2021 O-RING, 21MM
    O-RING, 21MM
  • 12044
    12044-1348 CAMSHAFT, VALVE, INTAKE
    CAMSHAFT, VALVE, INTAKE
  • 12044A
    12044-1427 CAMSHAFT, VALVE, EXHAUST (EXCEPT CALIF)
    CAMSHAFT, VALVE, EXHAUST (EXCEPT CALIF)
  • 12046
    12046-1063 SPROCKET, 42T
    SPROCKET, 42T
  • 12048
    12048-1066 TENSIONER, ASSY, CAM CHAIN
    TENSIONER, ASSY, CAM CHAIN
  • 12053
    12053-1107 GUIDE, CHAIN (UPPER)
    GUIDE, CHAIN (UPPER)
  • 12053A
    12053-1125 GUIDE, CHAIN (FRONT)
    GUIDE, CHAIN (FRONT)
  • 12053B
    12053-1126 GUIDE, CHAIN (REAR)
    GUIDE, CHAIN (REAR)
  • 39115
    39115-1051 SHAFT, IDLER
    SHAFT, IDLER
  • 39132
    39132-1052 SPROCKET, ASSY, IDLER
    SPROCKET, ASSY, IDLER
  • 49118
    49118-1168 CAMSHAFT, COMP, EXHAUST (CALIF. ONLY)
    CAMSHAFT, COMP, EXHAUST (CALIF. ONLY)
  • 92022
    92022-1365 WASHER, 10X22X3
    WASHER, 10X22X3
  • 92026
    92026-1231 SPACER, L=28.3
    SPACER, L=28.3
  • 92055
    92055-1141 O-RING, ID=13.8
    O-RING, ID=13.8
  • 92057
    92057-1170 CHAIN, CAM, 79RU2010, 158L
    CHAIN, CAM, 79RU2010, 158L
  • 92081
    92081-1626 SPRING, DECOMPRESSOR
    SPRING, DECOMPRESSOR
  • 92150
    92150-1380 BOLT, TENSIONER
    BOLT, TENSIONER
